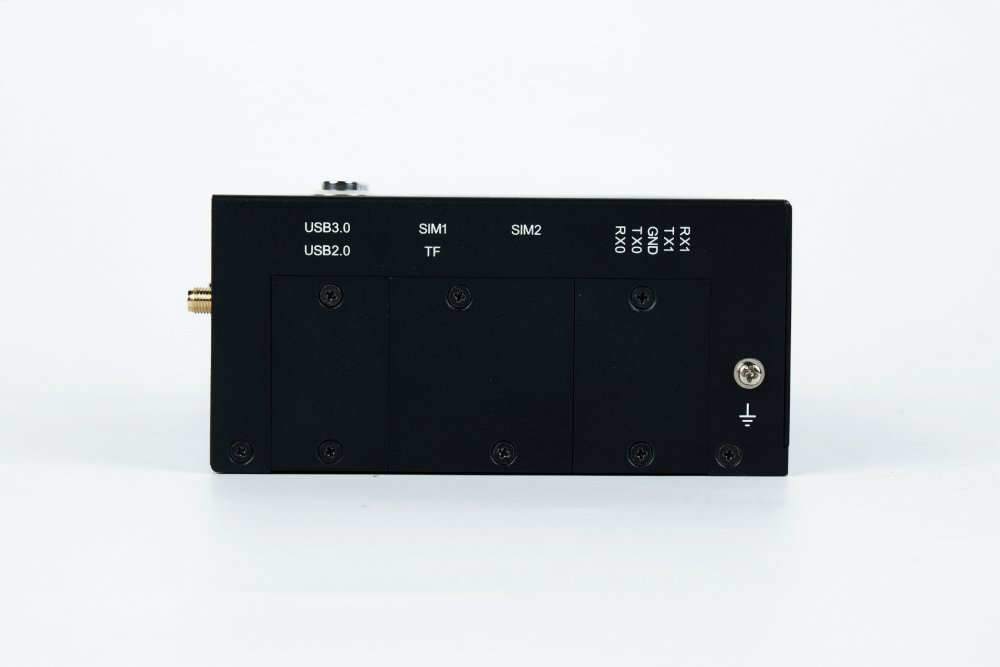

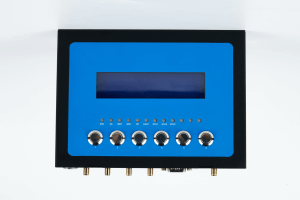

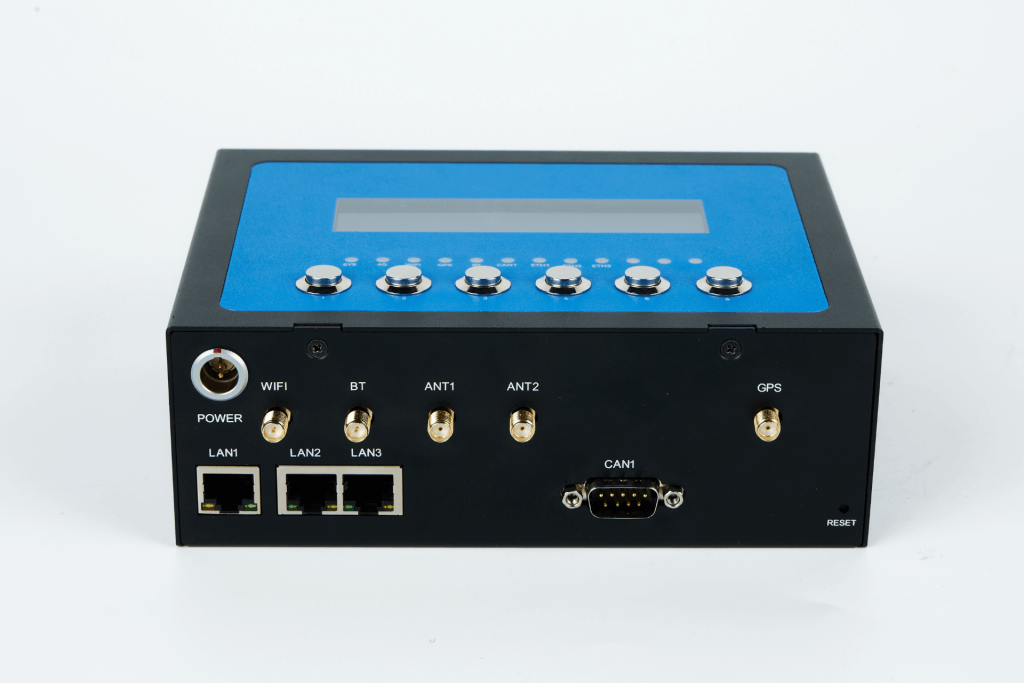

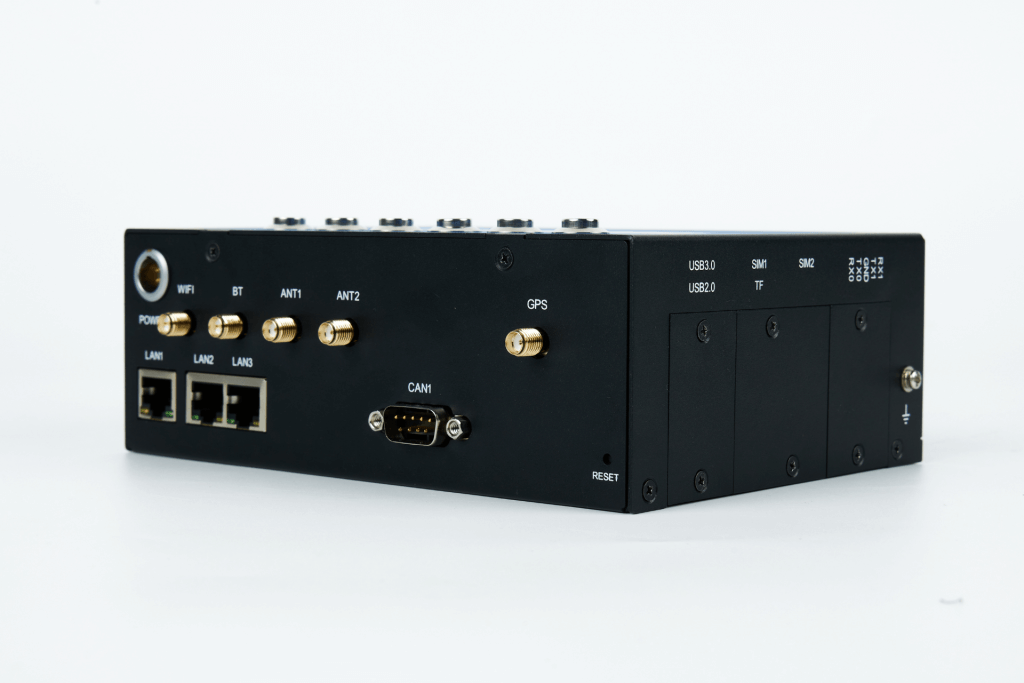

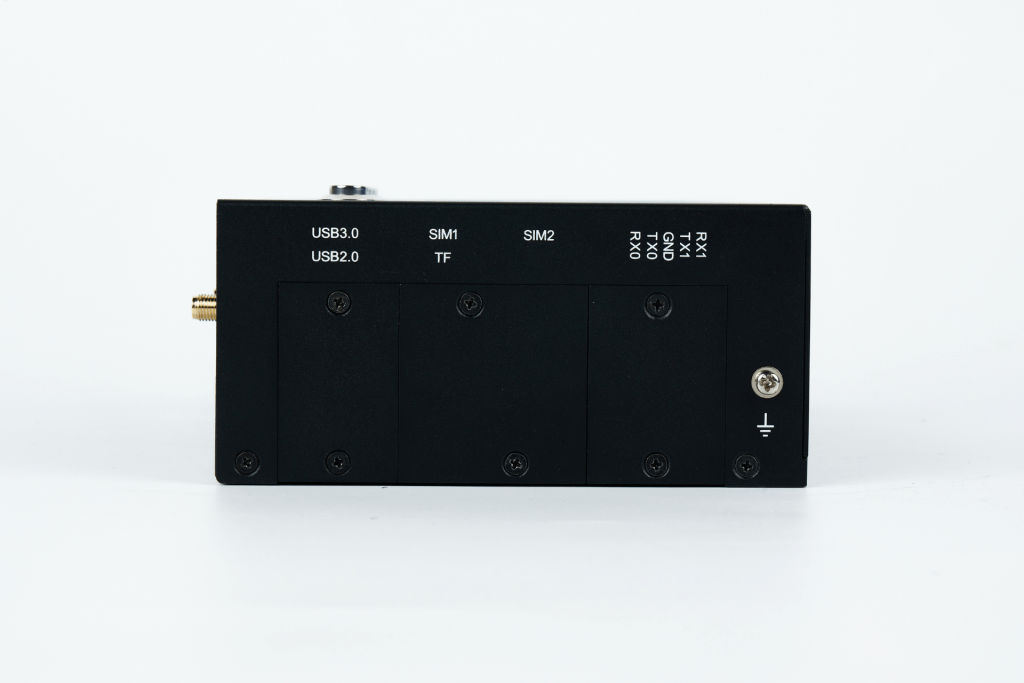

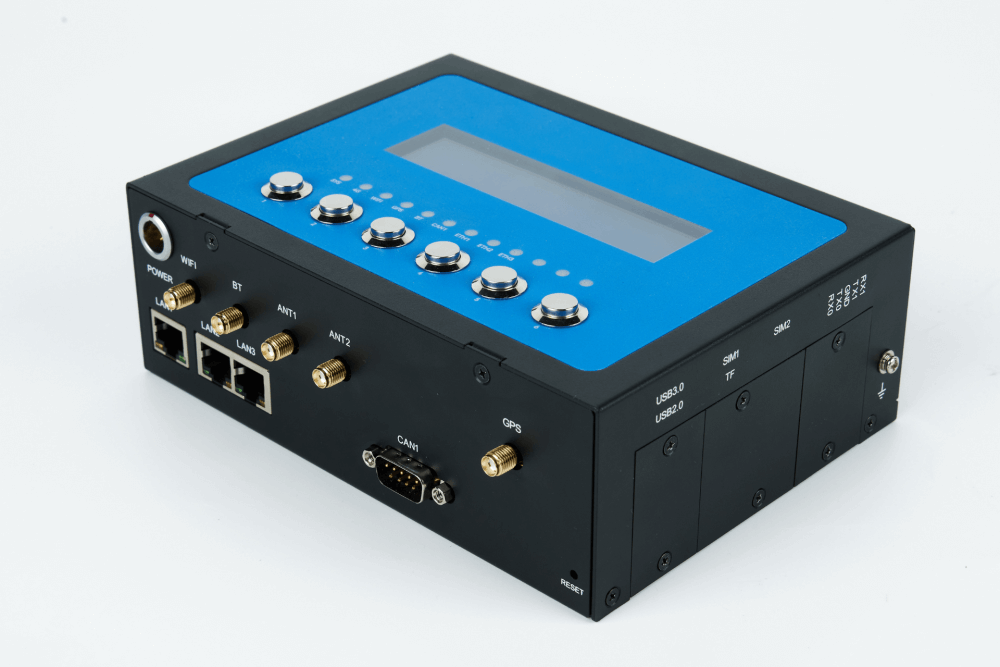

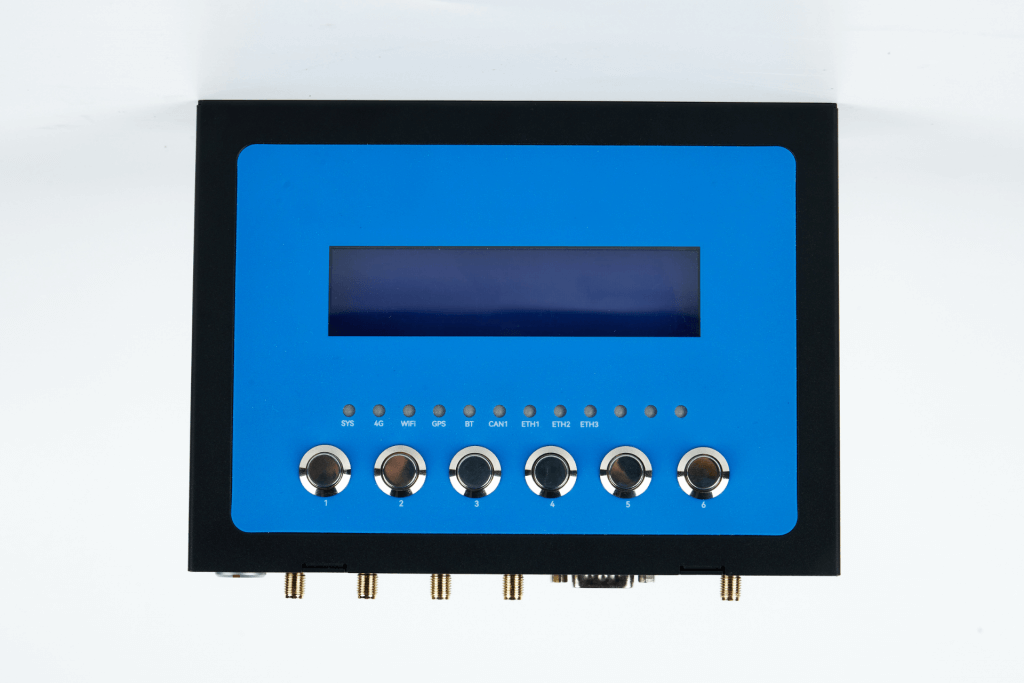

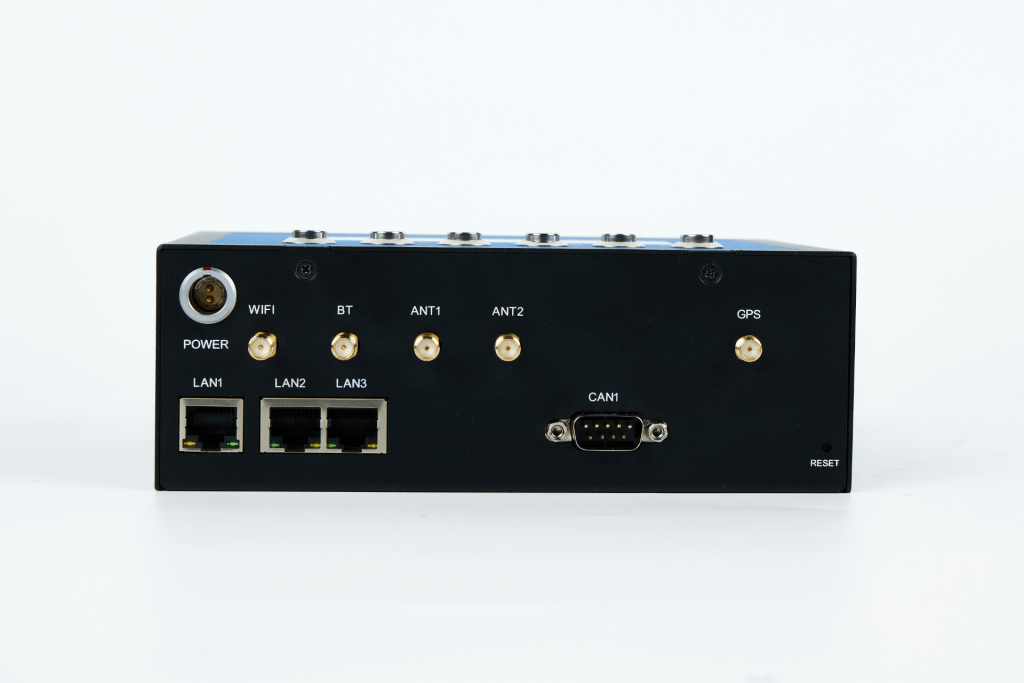

VG465: CAN FD/CAN Vehicle Gateway
● Quad-core 64-bit ARM Cortex-A55 up to 2GHz
● NPU up to 1 TOPS, ARM G52 2EE GPU
● 8GB RAM (DDR4) and 64GB Flash(eMMC)
● Openwrt Linux OS with Python/C/C++ programmable, or Unbuntu, docker container, flexible for secondary development
● 5G NR or 4G LTE, Dual SIM
● LCD screen, 3-RJ45(GbE), 1-CAN FD/CAN, WIFI6, Bluetooth, GPS, 6 programmable buttons, 2-RS232(1-Debug) 1-USB2.0, 1-USB3.0, 1-TF
● Power input: 5-60VDC
● MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, IEC101/104 and VPN
● NPU up to 1 TOPS, ARM G52 2EE GPU
● 8GB RAM (DDR4) and 64GB Flash(eMMC)
● Openwrt Linux OS with Python/C/C++ programmable, or Unbuntu, docker container, flexible for secondary development
● 5G NR or 4G LTE, Dual SIM
● LCD screen, 3-RJ45(GbE), 1-CAN FD/CAN, WIFI6, Bluetooth, GPS, 6 programmable buttons, 2-RS232(1-Debug) 1-USB2.0, 1-USB3.0, 1-TF
● Power input: 5-60VDC
● MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, IEC101/104 and VPN
- Overview
- Specifications
- Case Study
- Order Information
Introduction
The VG465 is an innovative and smart 5G/4G programmable edge gateway designed for automotive industry to diagnose vehicle Electronic Control Units (ECUs) remotely. Powered by an ARM A55 Quad-core 64-bit processor and boasting 8GB of RAM, along with 64GB of FLASH storage, this device is primed to meet the demands of remote monitoring of in-vehicle networking.
Featuring a user-friendly LCD screen, 6 programmable buttons, and a robust set of connectivity options — including 3 RJ45 gigabit Ethernet ports, CAN FD/CAN 2.0B, WiFi, Bluetooth, and GPS — the VG465 offers seamless integration and operation. It also includes 2 RS232 ports (with 1 dedicated for debugging), 1 USB 2.0, 1 USB 3.0, and a TF slot supporting up to 32GB of data storage.
With a wide power input range of 5-60VDC, the VG465 is equipped to handle the rigors of vehicle applications. Its operating system, based on OpenWrt Linux, supports C/C++ and Python SDKs for streamlined development. Alternatively, it can run on Ubuntu with Docker container support.
Moreover, the VG465 comes with a rich array of protocols including MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, SNMP, OPC UA, IEC 101/104, and VPN. These protocols allow for versatile and secure communication, tailor-made to meet your monitoring needs.
Featuring a user-friendly LCD screen, 6 programmable buttons, and a robust set of connectivity options — including 3 RJ45 gigabit Ethernet ports, CAN FD/CAN 2.0B, WiFi, Bluetooth, and GPS — the VG465 offers seamless integration and operation. It also includes 2 RS232 ports (with 1 dedicated for debugging), 1 USB 2.0, 1 USB 3.0, and a TF slot supporting up to 32GB of data storage.
With a wide power input range of 5-60VDC, the VG465 is equipped to handle the rigors of vehicle applications. Its operating system, based on OpenWrt Linux, supports C/C++ and Python SDKs for streamlined development. Alternatively, it can run on Ubuntu with Docker container support.
Moreover, the VG465 comes with a rich array of protocols including MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, SNMP, OPC UA, IEC 101/104, and VPN. These protocols allow for versatile and secure communication, tailor-made to meet your monitoring needs.

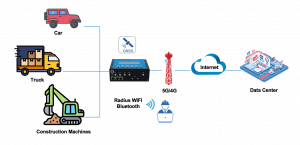

Applications
![applications of VG465 applications of VG465](https://www.bivocom.com/wp-content/uploads/2024/07/applications-of-VG465.png)
System
● CPU: ARM Cortex-A55, 64-bit, quad-core
● RAM: DDR4, 8GB
● Flash: eMMC, 64GB
● NPU: 512MAC , up to 1 TOPS
● GPU: Mali-G52, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Cellular Interface
● Antenna Connector: 4×50 Ω SMA Female(5G Version VG465-NR)
2×50 Ω SMA Female(4G Version VG465-LF)
● SIM Slot: 2 x Micro SIM, Dual SIM
● ESD Protection: 15KV
Ethernet Interface
● Ports: 3-RJ45 (1-WAN, 2-LAN or 3-LAN configurable)
● Data Rates: 10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX
● ESD Protection: 1.5KV
CAN FD/CAN
● Connector: 9-Pin D-SUB, Male
● Standard: Conforms to ISO 11898-1:2015
CAN 2.0 B and FD
Arbitration Bit Rate up to 1 Mbps
Data Bit Rate up to 5 Mbps
Serial Interfaces
● Connector: Terminal block, 3.5 mm female socket
● Ports: 2-RS232(1-Debug)
● Baud Rate: 300bps to 230400bps
● ESD protection: 8KV
Bluetooth
● Standard: BT 5.0
● Connector: 1 × 50 Ω RP-SMA Female
Wi-Fi 6
● Antenna Connector: 1 × 50 Ω RP-SMA Female
● Standard: 802.11 a/b/g/n/ac/ax, AP and Client modes
● Security: Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius
GPS
● Module: Independent GPS module
● Antenna Connector: 1 × 50 Ω SMA Female
LCD Display
● Dot Matrix: 160×32 Dots
● LCD Mode: STN
External Storage
● TF Card Slot: 1x Micro SD interface, Up to 32G
● USB: 1x USB3.0, 1x USB2.0
● Usage: User Program, Data Storage and Firmware Upgrade
Power Input
● Connector: 2 Pin EGG 1B LEMO
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-60 VDC
Software
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH
● Industrial Protocols: MQTT client/broker, Transparent (TCP/UDP Client/Server), Modbus RTU/TCP, OPC UA, IEC101/104, DL/T645-2007, PLC(S7, FP)*
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
● Firewall: ACL/DMZ/Port Mapping/MAC Binding
● Management: Web, CLI, SMS, Cloud DMP (Device Management Platform)*
● Reliability: Dual SIM, WWAN and WAN Failover, Hardware & Software Watchdog
● Secondary Development: OpenWrt based Linux OS, C/C++, Python SDK; or Ubuntu, Docker container*
Physical Characteristics
● Ingress Protection: IP30
● Housing & Weight: Metal, 1051g(2.32lbs), without accessories
● Dimensions: 173x126.7x60.5mm (6.81 x 4.96 x 2.38in)
● Mounting: Desktop
Environmental
● Operating Temperature: -20°C to +60°C (-4℉ to +140℉)
● Storage Temperature: -30°C to +70°C (-22℉ to +158℉)
● Relative Humidity: 5% to 95% (non-condensing)
Others
● Reset Button: 1
● Programmable Button: 6
● LED Indicators: 12 (SYS, 4G, WIFI, GPS, BT, CAN1, ETH1, ETH2, ETH3, 3 Reversed)
● Built-in: Watchdog, RTC, Timer
● Approvals: CE*, RCM*, FCC*
● Warranty Period:
Standard: 12 Months
Extended: 2-5 Years
Standard Package Content
1. VG465 Gateway: 1PCS
2. Cellular Antenna: 5G Version: 4PCS
4G Version: 2PCS
3. WIFI Antenna: 1PCS
4. Bluetooth Antenna: 1PCS
5. GPS Antenna: 1PCS
6. Ethernet Cable(1 meter): 1PCS
7. 5-Pin Terminal Block: 1PCS
8. RS232 Cable: 1PCS
(DB9 Female, 1 meter)
● CPU: ARM Cortex-A55, 64-bit, quad-core
● RAM: DDR4, 8GB
● Flash: eMMC, 64GB
● NPU: 512MAC , up to 1 TOPS
● GPU: Mali-G52, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Cellular Interface
● Antenna Connector: 4×50 Ω SMA Female(5G Version VG465-NR)
2×50 Ω SMA Female(4G Version VG465-LF)
● SIM Slot: 2 x Micro SIM, Dual SIM
● ESD Protection: 15KV
Ethernet Interface
● Ports: 3-RJ45 (1-WAN, 2-LAN or 3-LAN configurable)
● Data Rates: 10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX
● ESD Protection: 1.5KV
CAN FD/CAN
● Connector: 9-Pin D-SUB, Male
● Standard: Conforms to ISO 11898-1:2015
CAN 2.0 B and FD
Arbitration Bit Rate up to 1 Mbps
Data Bit Rate up to 5 Mbps
Serial Interfaces
● Connector: Terminal block, 3.5 mm female socket
● Ports: 2-RS232(1-Debug)
● Baud Rate: 300bps to 230400bps
● ESD protection: 8KV
Bluetooth
● Standard: BT 5.0
● Connector: 1 × 50 Ω RP-SMA Female
Wi-Fi 6
● Antenna Connector: 1 × 50 Ω RP-SMA Female
● Standard: 802.11 a/b/g/n/ac/ax, AP and Client modes
● Security: Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius
GPS
● Module: Independent GPS module
● Antenna Connector: 1 × 50 Ω SMA Female
LCD Display
● Dot Matrix: 160×32 Dots
● LCD Mode: STN
External Storage
● TF Card Slot: 1x Micro SD interface, Up to 32G
● USB: 1x USB3.0, 1x USB2.0
● Usage: User Program, Data Storage and Firmware Upgrade
Power Input
● Connector: 2 Pin EGG 1B LEMO
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-60 VDC
Software
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH
● Industrial Protocols: MQTT client/broker, Transparent (TCP/UDP Client/Server), Modbus RTU/TCP, OPC UA, IEC101/104, DL/T645-2007, PLC(S7, FP)*
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
● Firewall: ACL/DMZ/Port Mapping/MAC Binding
● Management: Web, CLI, SMS, Cloud DMP (Device Management Platform)*
● Reliability: Dual SIM, WWAN and WAN Failover, Hardware & Software Watchdog
● Secondary Development: OpenWrt based Linux OS, C/C++, Python SDK; or Ubuntu, Docker container*
Physical Characteristics
● Ingress Protection: IP30
● Housing & Weight: Metal, 1051g(2.32lbs), without accessories
● Dimensions: 173x126.7x60.5mm (6.81 x 4.96 x 2.38in)
● Mounting: Desktop
Environmental
● Operating Temperature: -20°C to +60°C (-4℉ to +140℉)
● Storage Temperature: -30°C to +70°C (-22℉ to +158℉)
● Relative Humidity: 5% to 95% (non-condensing)
Others
● Reset Button: 1
● Programmable Button: 6
● LED Indicators: 12 (SYS, 4G, WIFI, GPS, BT, CAN1, ETH1, ETH2, ETH3, 3 Reversed)
● Built-in: Watchdog, RTC, Timer
● Approvals: CE*, RCM*, FCC*
● Warranty Period:
Standard: 12 Months
Extended: 2-5 Years
Standard Package Content
1. VG465 Gateway: 1PCS
2. Cellular Antenna: 5G Version: 4PCS
4G Version: 2PCS
3. WIFI Antenna: 1PCS
4. Bluetooth Antenna: 1PCS
5. GPS Antenna: 1PCS
6. Ethernet Cable(1 meter): 1PCS
7. 5-Pin Terminal Block: 1PCS
8. RS232 Cable: 1PCS
(DB9 Female, 1 meter)

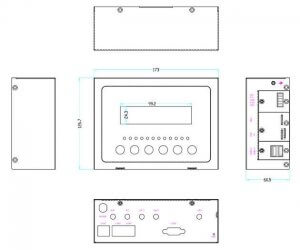

Dimensions (173x126.7x60.5mm)
