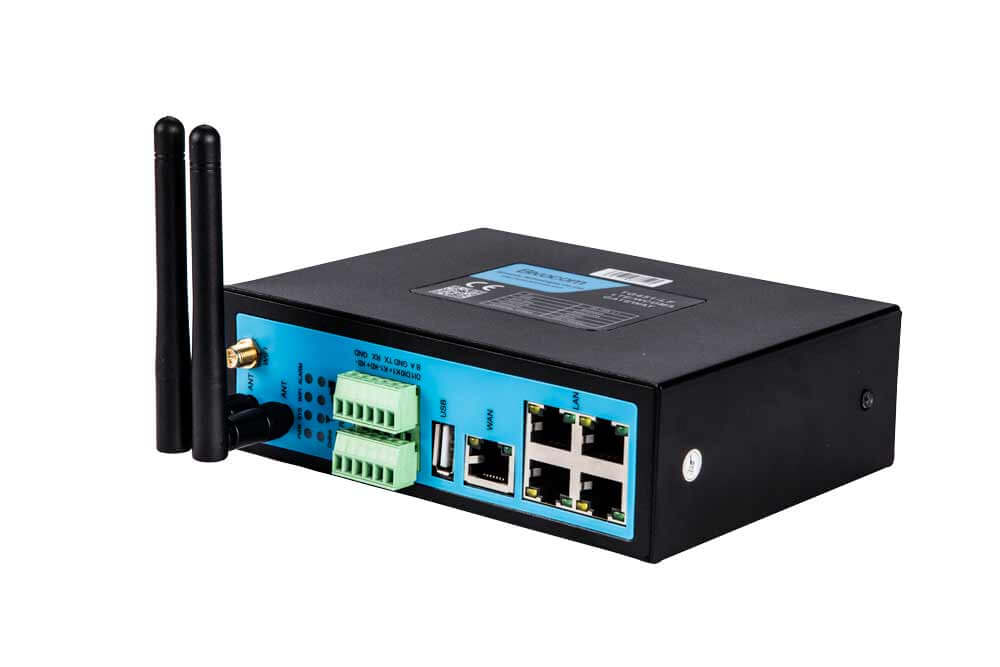

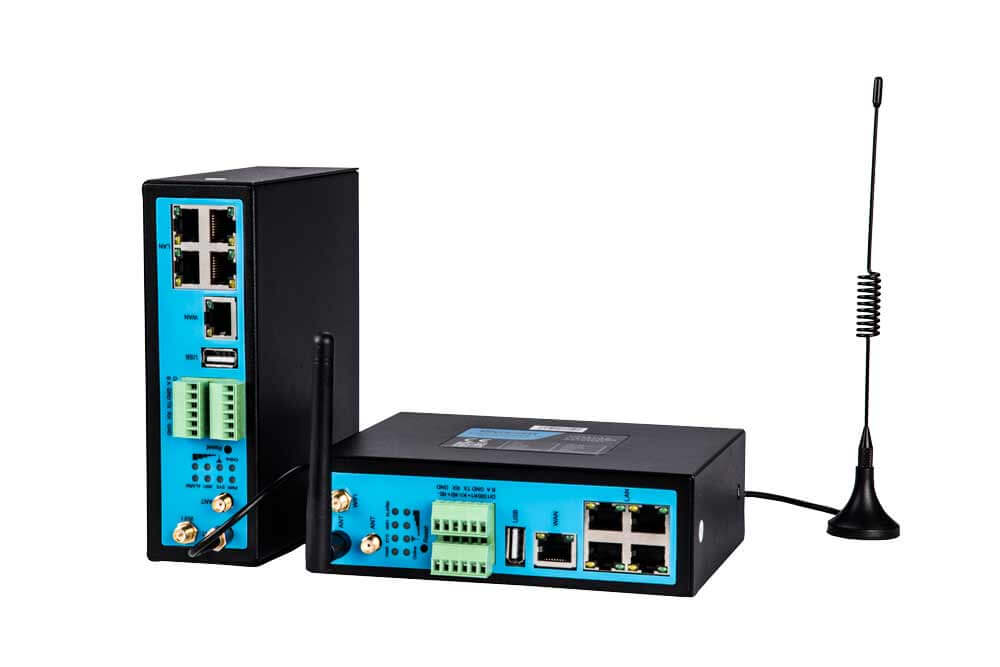

TG451 Industrial IoT Gateway

RS232/RS485, DI/DO, USB, 5-RJ45, GPS, WIFI
Dual SIM and Dual module for failover and load balance

TG451: IoT Gateway

Programmable high speed industrial IoT gateway for serial, Ethernet, DI/DO, Bluetooth enabled sensors and controllers

● LTE CAT 6 and CAT 4 compatible*
● Dual SIM for failover and Dual Module for load balance*
● Failover between WWAN and WAN*
● 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO, WIFI, SD*, GPS*
● DI status alarm with configurable SMS ● relay to turn on/off your field devices
● C/C++, Python, LUA programming*

*LTE CAT 6, Dual SIM, Dual Module, SD or GPS are option features or from customized firmware
*Python, LUA requires customized hardware and firmware.

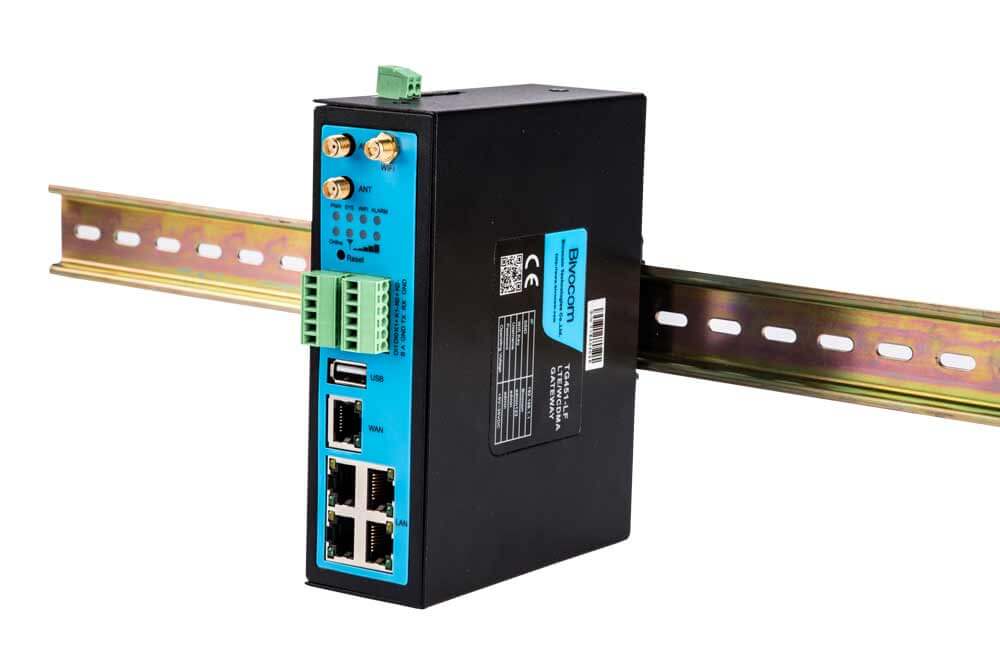

Industrial Gateway TG451

Buy Now

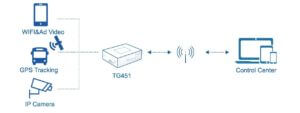

Bivocom TG451 is an industrial IoT gateway designed for applications like water pump station, power substation, vehicle WIFI, traffic light that requires collecting and sending types of data from different sensors and controllers to remote location over cellular network at a high speed data rate.

The dual SIM and dual module mode*, as well as LTE CAT 6* allows users to transfer the big data at wider bandwidth and faster speed.

The rich interface enabled feature allows users to connect serial port, Ethernet port, digital input, Bluetooth sensors and controllers, and relay output to control the status of external field device.

TG451 industrial iot gateway has customized firmware for bus/taxi intelligent marketing wifi system, which it’s a great solution for display of video ads on the passenger mobile devices, helping the bus/taxi companies increase their customer satisfaction, meanwhile, earning money from selling advertisement.

* option feature

Cellular Interface
● Antenna Connector: 2 × 50 Ω SMA Female
● SIM Slot: 1, or 2 (For DSDM or DSSM)*

Ethernet Interfaces

● Ports: 5-RJ45 (1-WAN, 4-LAN or 5-LAN)

● Data Rate: 10/100 Mbps (Auto-Sensing), Auto MDI/MDIX

Serial Interface
● Ports: 1-RS232, 1-RS485

Wi-Fi
● Antenna Connector: 1 × 50 Ω SMA Male
● Standard: IEEE 802.11b/g/n
● Transmission Rate: IEEE802.11b/g: Up to 54Mbps; IEEE802.11n: Up to 300Mbps

GPS (Optional)
● Module: Built-in independent GPS module
● Antenna Connector: 1 × 50 Ω SMA Female

I/O

● DI: 2-DI (0-30V Input)
● DO: 2-Relay (Up to 5A and 30VDC/250VAC output)

External Storage
● USB Por: 1 x USB 2.0

● SD (Optional): 1 x Micro SD interface, Up to 32G
● Usage: User Program, Data Storage and Firmware Upgrade

Power Requirements
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-35 VDC

Software
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH

● Serial Port: MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN

Physical
● Ingress Protection: IP30
● Housing & Weight: Metal, 790 g(1.74lbs)
● Dimensions: 145 x 114 x 45mm (5.71 x 4.49 x 1.77in)
● Mounting: Desktop, DIN-Rail

Environmental
● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)

Others

● Reset Button: 1-RESET
● LED Indicators: POWER, WiFi, SYSTEM, ALARM,ONLINE, Signal Strength
● Warranty Period: Standard: 12 Months, Extended: 2-5 Years*(Please refer to warranty policy)
● Approvals: CE, RCM, NBTC, FCC*(*Under Progress)

Item	TG451
Cellular Interfaces
Antenna Connector SIM Slot	2 × 50 Ω SMA Female 1, or 2 (For DSDM or DSSM)
Ethernet Interface
Ports Data Rate	5-RJ45 (1-WAN, 4-LAN or 5-LAN) 10/100 Mbps (Auto-Sensing), Auto MDI/MDIX
Serial Interface
Ports	1-RS232 + 1-RS485
Wi-Fi
Antenna Connector Standard Transmission Rate	1 × 50 Ω SMA Male IEEE 802.11b/g/n IEEE802.11b/g: Up to 54Mbps IEEE802.11n: Up to 300Mbps
External Storage
USB Port SD (Optional) Usage	1 x USB 2.0 1 x Micro SD interface, Up to 32G User Program, Data Storage and Firmware Upgrade
I/O
DI DO	2-DI (0-30V Input) 2-Relay (Up to 5A and 30VDC/250VAC output)
GPS (Optional)
Module Antenna Connector	Built-in independent GPS module 1 × 50 Ω SMA Female
Power Supply
Standard Power Input Voltage	DC 12V/1.5A 5-35 VDC
Software
Network Protocols Serial Port VPN Tunnel	PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP) IPsec/PPTP/L2TP/GRE/OpenVPN
Physical
Ingress Protection Housing & Weight Dimensions Mounting	IP30 Metal, 790 g(1.74lbs) 145 x 114 x 45mm (5.71 x 4.49 x 1.77in) Desktop, DIN-Rail
Environmental
Operating Temperature	-35°C to +75°C (-31℉ to +167℉)
Others
Reset Button LED Indicators Approvals Warranty Period	1 POWER, WiFi, SYSTEM, ALARM,ONLINE, Signal Strength CE, RCM, NBTC, FCC(Under Progress) Standard: 12 Months Extended: 2-5 Years*(Please refer to warranty policy)

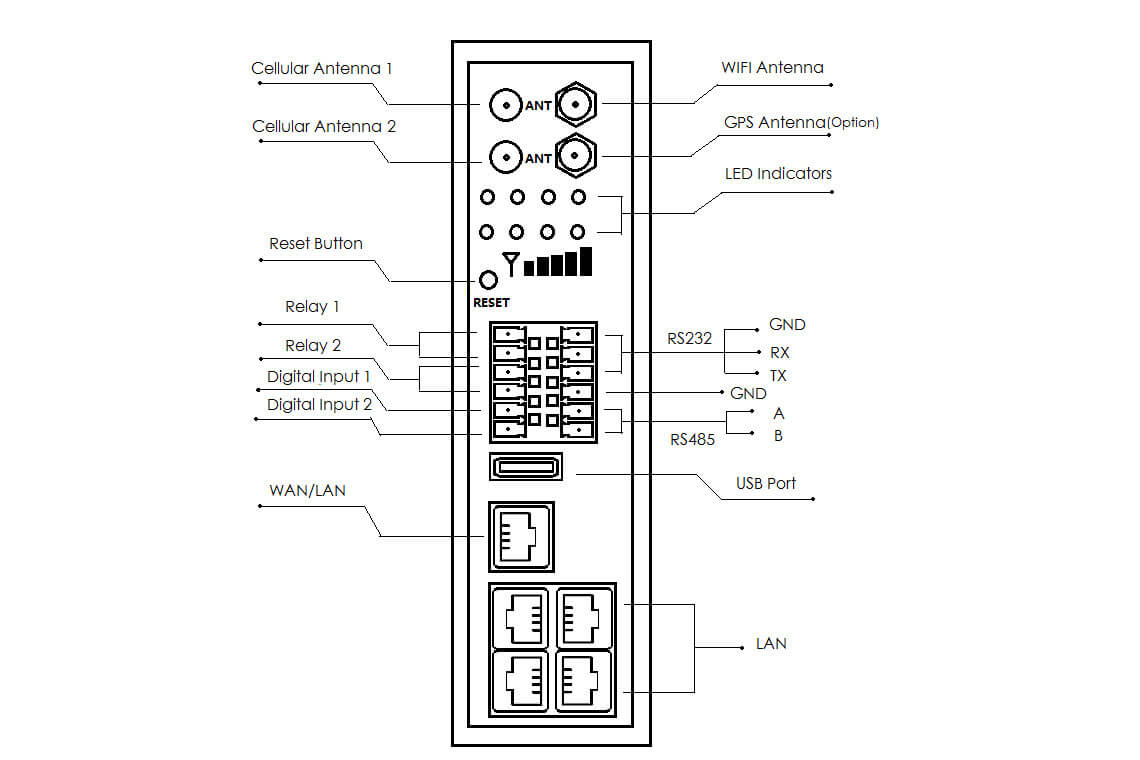

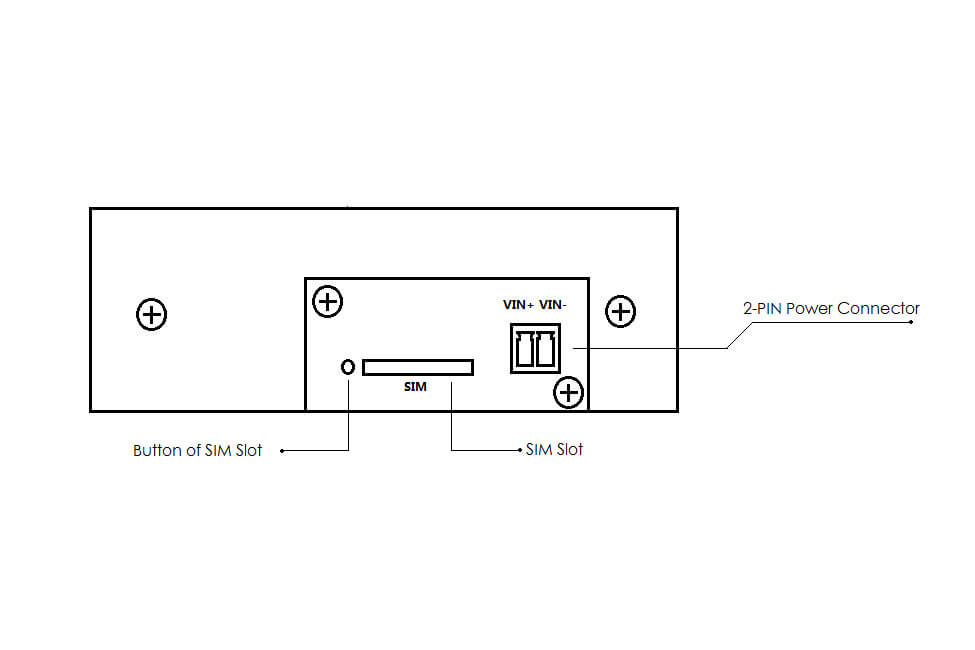

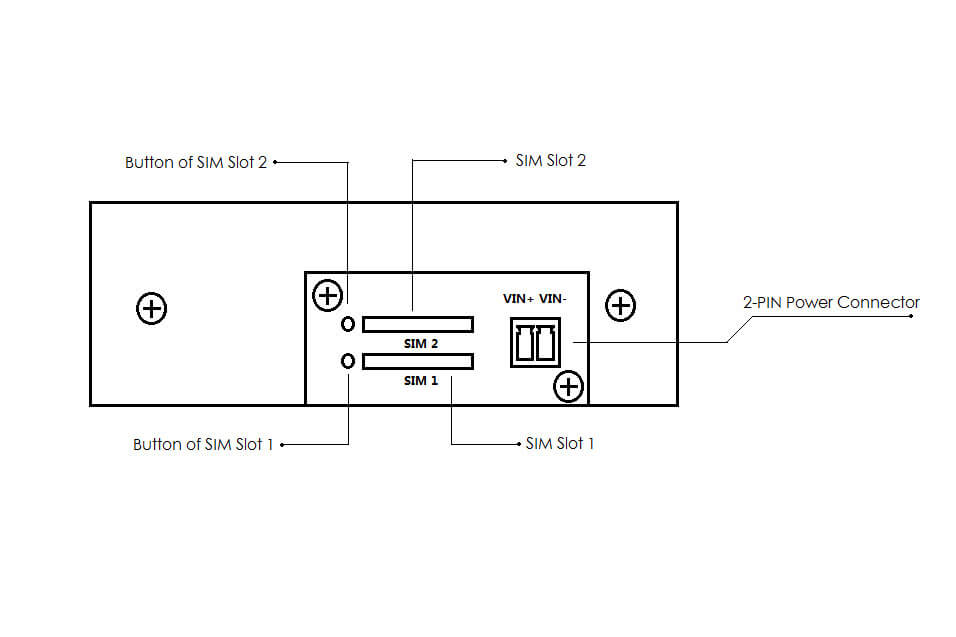

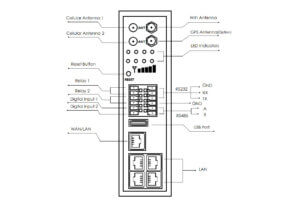

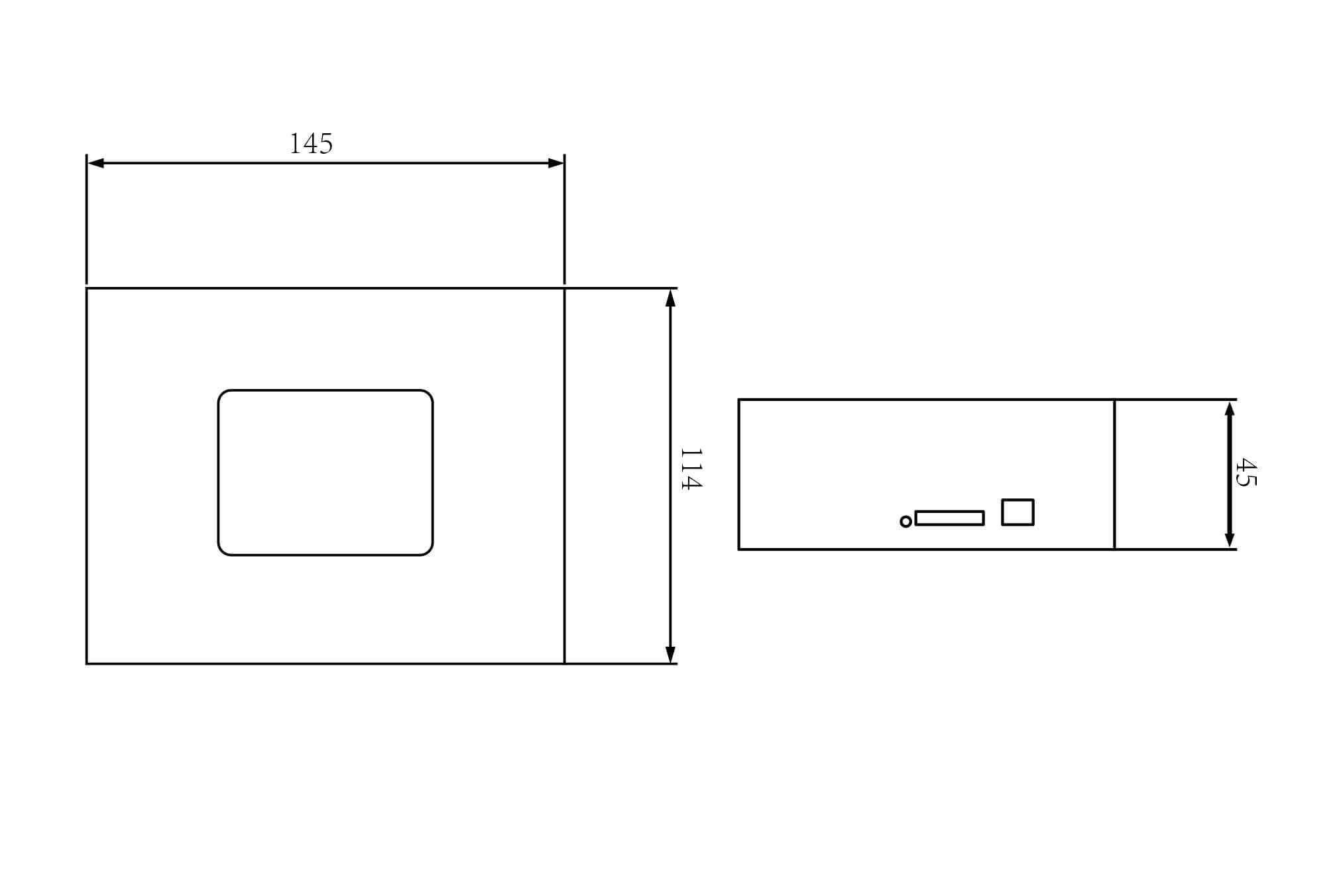

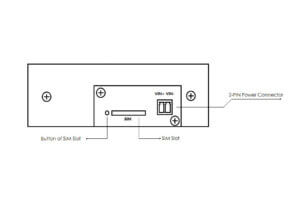

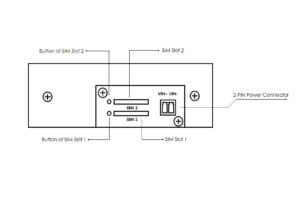

Dimension(mm) and Ports

IoT-based Smart Hospital Guidance Robot Solution

IoT-based Speed Measurement Solution on Highway

Fail to load posts. Try to refresh page.

Model:
   1. TG451-LF
       4G LTE CAT4 IoT Gateway
   2. TG451-W
       3G/WCDMA/UMTS/HSPA IoT Gateway

Part Number:
1. TG451-L<1><2>-<3>
2. TG451-W<1><2>-<3>

Decription:
   1. 4G Gateway, WIFI, 5-RJ45, 1-RS232, 1-RS485, USB, 2-DI, 2-DO
   2. 3G Gateway, WIFI, 5-RJ45, 1-RS232, 1-RS485, USB, 2-DI, 2-DO
       ● <1>, means different module for different countries and regions
       ● <2>=DS, Dual SIM(Dual SIM on single module, failover)

       ● <2>=DM, Dual Module(Dual SIM on dual module, load balance)
       ● <3>=W, WIFI
       ● <3>=G, GPS(standalone GPS)

Frequency band:
   1. 4G LTE CAT 4
   ● EMEA:B1/B3/B5/B7/B8/B20/B38/B40/B41
   ● ANZ/LATAM:B1/B3/B5/B7/B8/B28
   ● NA:B2/B4/B5/B12/B13/B14

   2. 3G/HSPA/UMTS/WCDMA
   ● Region: 900/2100MHz, or 850/1900/2100MHz
   ● Global: 800/850/900/1900/2100

1. <1> in part number means different frequency band for different market, <2> means the router comes with dual sim(DS) or dual module(DM), <3> means if the router comes with WIFI(G), or GPS(G), please ask Bivocom sales representatives or your local partner for more information.

2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.

3. Dual SIM means dual SIM based on single module for failover, Dual module means dual sim based on separate dual module for load balance.

Model	Part Number*	Description	Frequency Band*
TG451-LF	TG451-L<...>-W	4G, WIFI, 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO	4G LTE CAT 4 EMEA: B1/B3/B5/B7/B8/B20/B38/B40/B41
TG451-LF	TG451-L<...>-WG	4G, GPS, WIFI, 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO	ANZ/LATAM: B1/B3/B5/B7/B8/B28
TG451-LF	TG451-L<...>DS-W	4G, Dual SIM, WIFI, 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO	NA: B2/B4/B5/B12/B13/B14
TG451-LF	TG451-L<...>DS-WG	4G, Dual SIM, GPS, WIFI, 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO
TG451-LF	TG451-L<...>DM-W	4G, Dual Module, WIFI, 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO
TG451-LF	TG451-L<...>DM-WG	4G, Dual Module, GPS, WIFI, 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO
TG451-W	TG451-W<...>-W	3G, WIFI, 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO	3G/HSPA/UMTS/WCDMA 900/2100MHz, or 850/1900/2100MHz Global: 800/850/900/1900/2100

1. <...> in part number means different frequency band for different market, please ask Bivocom sales representatives or your local partner for more information.

2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.

3. Dual SIM means dual SIM based on single module for failover, Dual module means dual sim based on separate dual module for load balance.

Documents	Sizes
How to get Modbus Data via MQTT?	671 KB, PDF
How to Configure I/O and Get SMS Alarm?	618 KB, PDF
How to quickly set up IPsec VPN?	1,021 KB, PDF

TG451(Customized) Data Sheet

Note: Bivocom provides customized firmware and hardware, standard product doesn't list all features, for more information, please feel free to contact us at [email protected]
