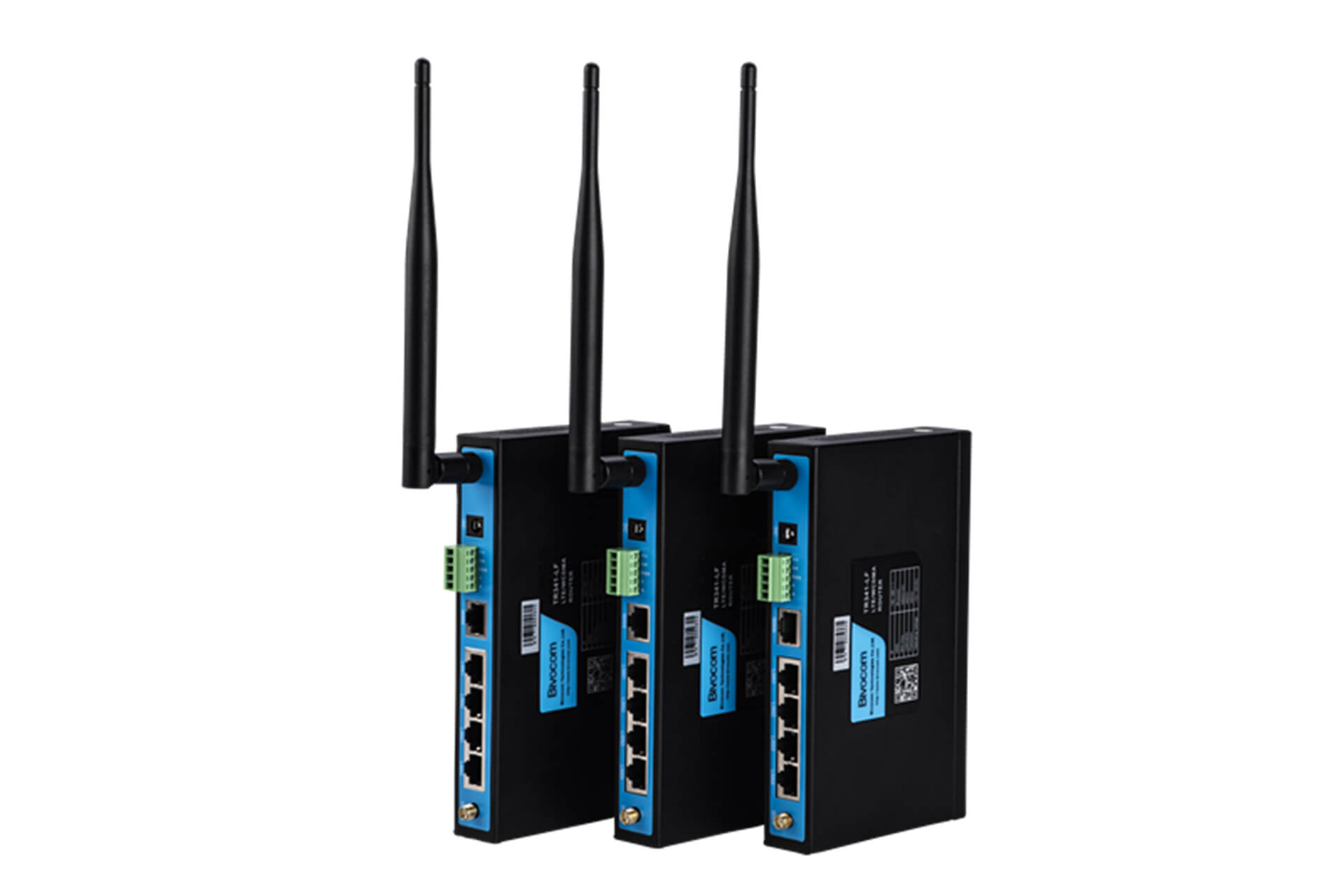

TR341 Industrial 5-Port Router
Secure VPN, Radius WIFI, GPS, Dual SIM
RS232, RS485, 1-WAN, 4-LAN
RS232, RS485, 1-WAN, 4-LAN

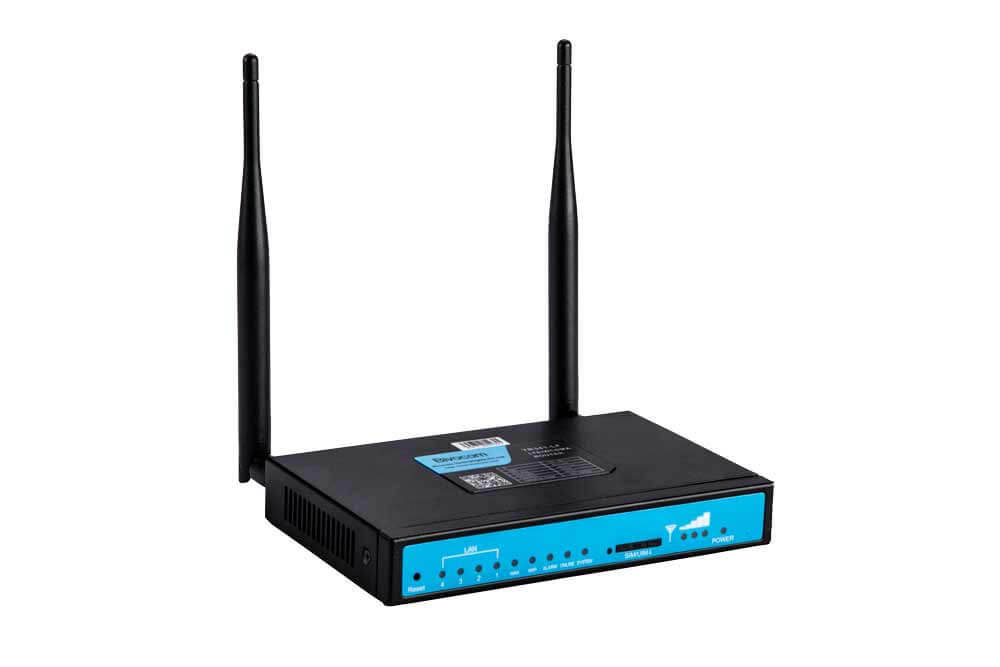

TR341: 4G IoT Router
Cost effective 4G WIFI 5-Port Router for ATM and transportation
* Dual SIM, GPS, LTE CAT 6 are option features
- Overview
- Specifications
- Case Study
- Order Information
- Customized Model
Bivocom TR341 industrial router is an industrial grade router that provides 5 Ethernet ports allows you to connect to up to 5 LAN devices or controllers. Besides, it has RS232, RS485 with Modbus TCP/RTU and MQTT to integrate your system with both Serial port and Ethernet port based system, which makes your solution more cost-effective.
TR341 industrial router has dual SIM* for failover, which ensures you have reliable cellular network between different carriers. And the WAN port allows you auto switch between WWAN and WAN.
The RADIUS WiFi Authentication ensures you can remote manage routers and field devices in a secure way.
The independent GPS* allow you track your mobile assets, including truck, bus, RV.
* option feature

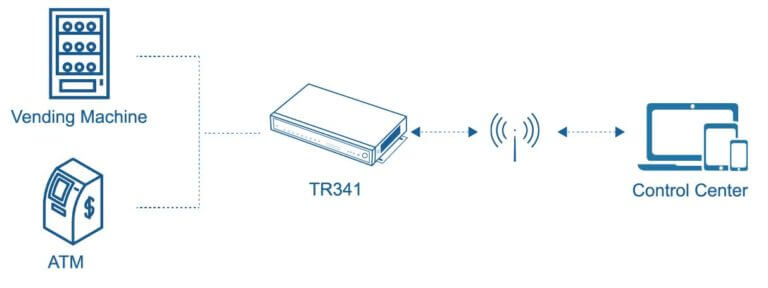

 "Products_topology_TR341")
Cellular Interface
● Antenna Connector: 1 × 50 Ω SMA Female

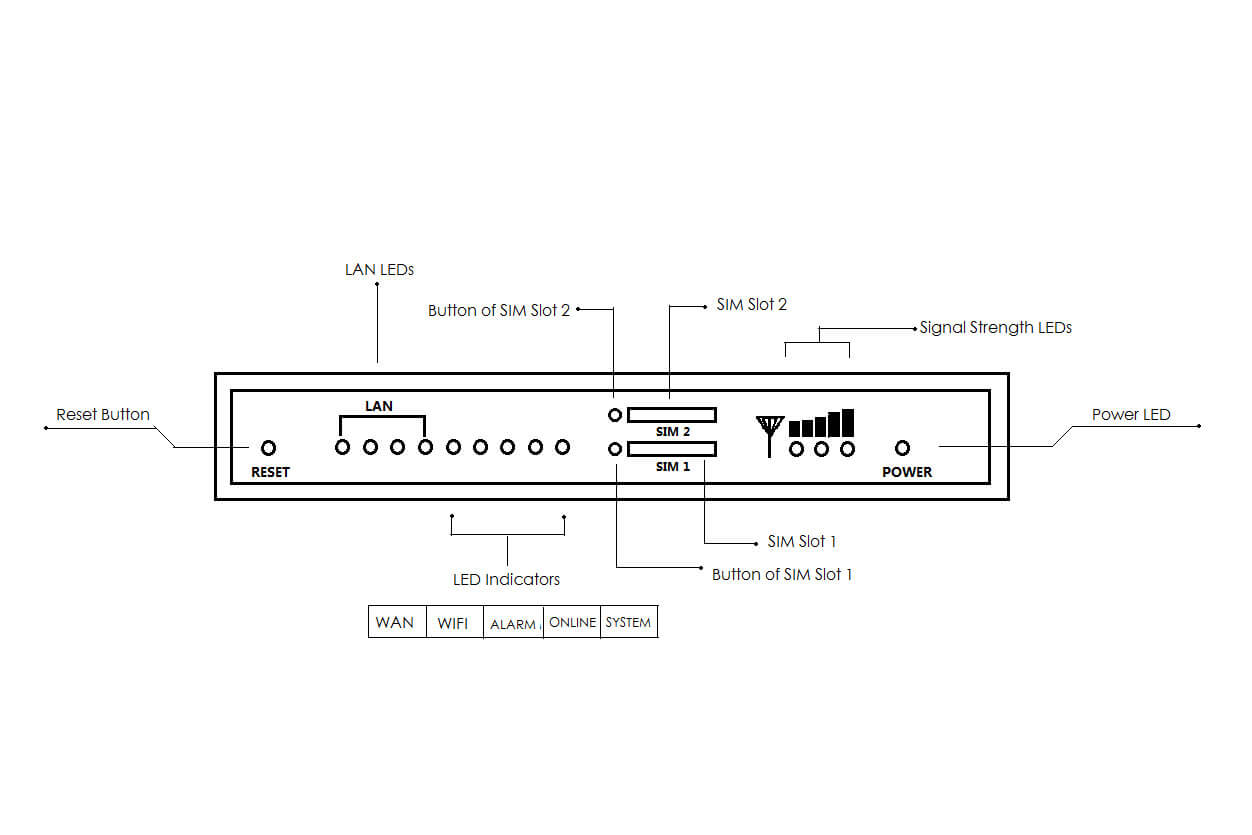

● SIM Slot: 1, or 2 (For DSSM)
● Antenna Connector: 1 × 50 Ω SMA Female
● SIM Slot: 1, or 2 (For DSSM)
Ethernet Interfaces
● Ports: 5-RJ45 (1-WAN, 4-LAN or 5-LAN)
● Data Rate: 10/100 Mbps (Auto-Sensing), Auto MDI/MDIX
Serial Interface
● Ports: 1-RS232, 1-RS485
Wi-Fi
● Antenna Connector: 1 × 50 Ω SMA Male
● Standard: IEEE 802.11b/g/n
● Transmission Rate: IEEE802.11b/g: Up to 54Mbps; IEEE802.11n: Up to 300Mbps
GPS (Optional)
● Module: Built-in independent GPS module
● Antenna Connector: 1 × 50 Ω SMA Female
Power Requirements
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-35 VDC
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-35 VDC
Software
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH
● Serial Port: MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
Physical
● Ingress Protection: IP30
● Housing & Weight: Metal, 790 g(1.74lbs)
● Dimensions: 168 x 104 x 27mm (6.61 x 4.09 x 1.06 in)
● Mounting: Desktop, Wall mount
Environmental
● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
Others
● Reset Button: 1-RESET

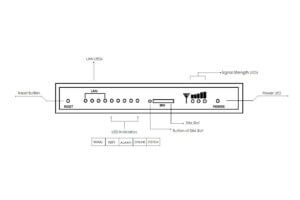

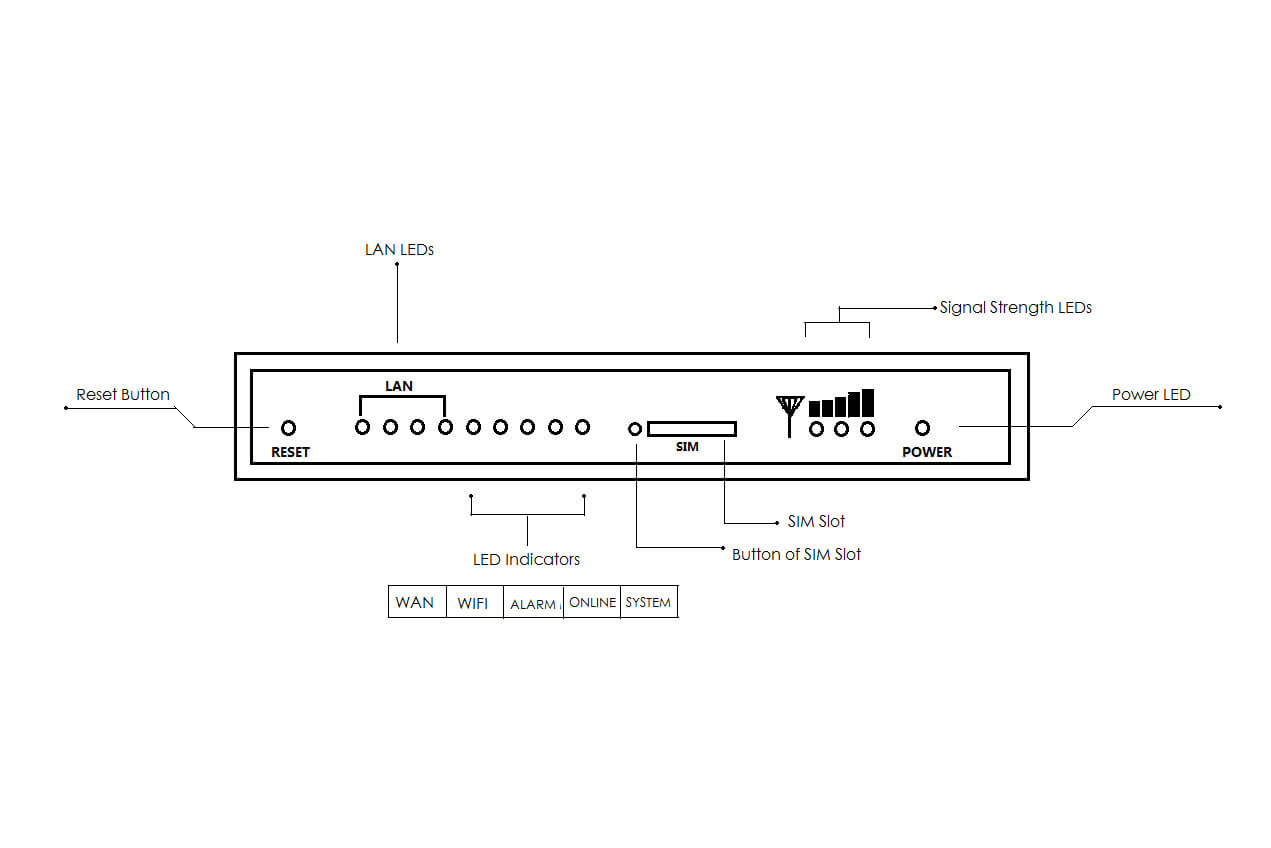

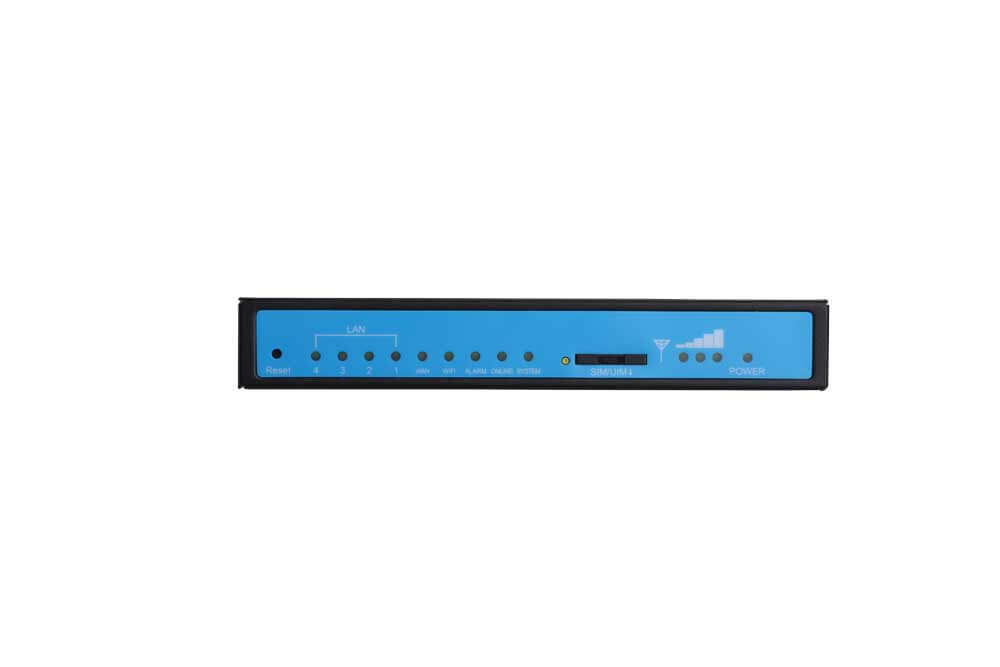

● LED Indicators: POWER, WAN, WiFi, ALARM, ONLINE, SYSTEM, LAN, Signal Strength
● Warranty Period: Standard: 12 Months, Extended: 2-5 Years*(Please refer to warranty policy)
● Approvals: CE*, RCM*(Under Progress)
● LED Indicators: POWER, WAN, WiFi, ALARM, ONLINE, SYSTEM, LAN, Signal Strength
● Warranty Period: Standard: 12 Months, Extended: 2-5 Years*(Please refer to warranty policy)
● Approvals: CE*, RCM*(Under Progress)
| Item | TR341 |
|---|---|
| Cellular Interfaces | |
Antenna Connector SIM Slot |
1 × 50 Ω SMA Female 1, or 2 (For DSSM) |
| Ethernet Interface | |
Ports Data Rate |
5-RJ45 (1-WAN, 4-LAN or 5-LAN) 10/100 Mbps (Auto-Sensing), Auto MDI/MDIX |
| Serial Interface | |
| Ports |
1-RS232 + 1-RS485 |
| Wi-Fi |
|
Antenna Connector Standard Transmission Rate |
1 × 50 Ω SMA Male IEEE 802.11b/g/n IEEE802.11b/g: Up to 54Mbps IEEE802.11n: Up to 300Mbps |
| GPS (Optional) | |
Module Antenna Connector |
Built-in independent GPS module 1 × 50 Ω SMA Female |
| Power Supply | |
Standard Power
Input Voltage |
DC 12V/1.5A
5-35 VDC |
| Software | |
Network Protocols
Serial Port VPN Tunnel |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH
MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP) IPsec/PPTP/L2TP/GRE/OpenVPN |
| Physical | |
Ingress Protection
Housing & Weight Dimensions Mounting |
IP30 Metal, 790 g(1.74lbs) 168 x 104 x 27mm (6.61 x 4.09 x 1.06 in) Desktop, Wall mount |
| Environmental | |
| Operating Temperature | -35°C to +75°C (-31℉ to +167℉) |
| Others | |
Reset Button LED Indicators Warranty Period |
1 POWER, WAN, WiFi, ALARM, ONLINE, SYSTEM, LAN, Signal Strength Standard: 12 Months Extended: 2-5 Years*(Please refer to warranty policy) |

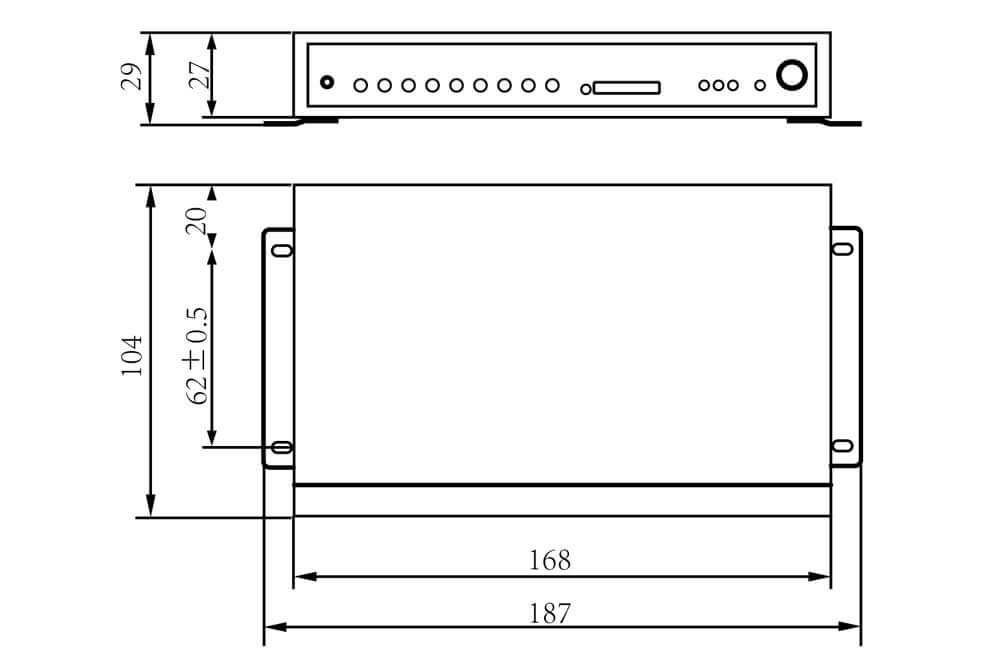

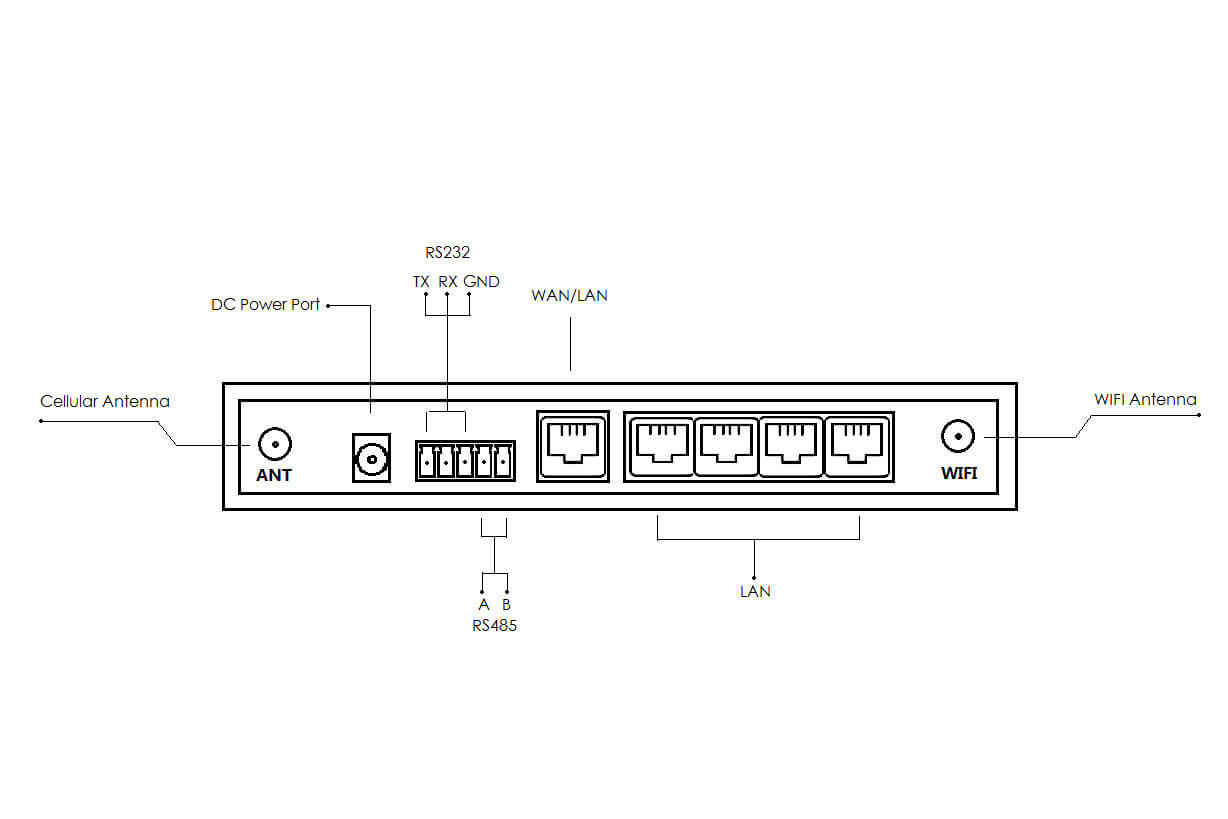

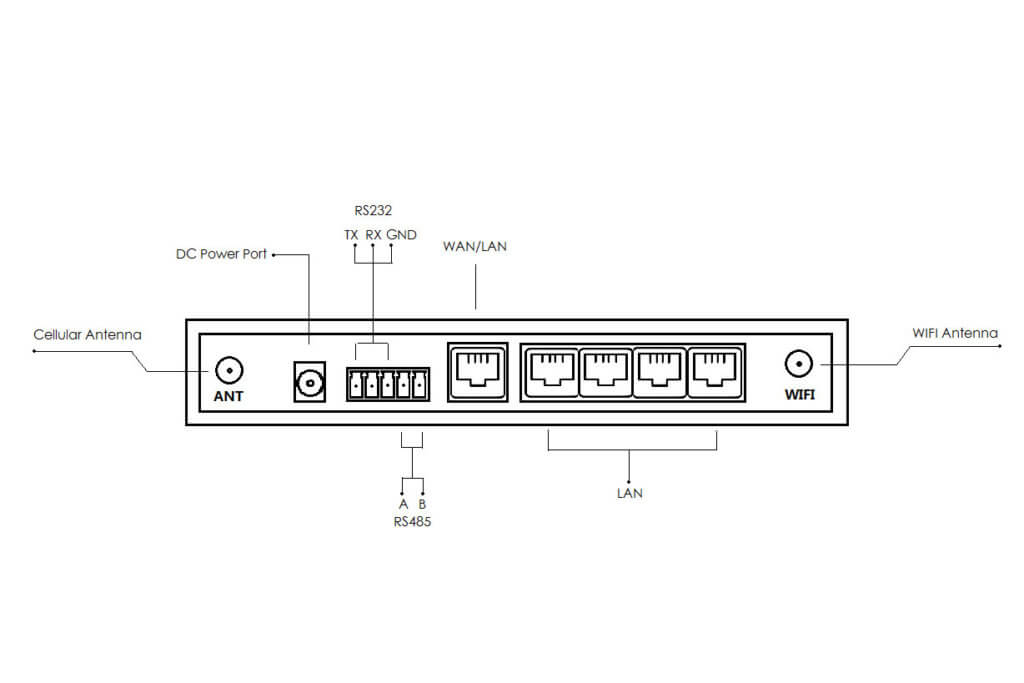

Dimension(mm) and Ports
Model:
1. TR341-LF
4G LTE CAT4 IoT Router
2. TR341-W
3G/WCDMA/UMTS/HSPA IoT Router
1. TR341-LF
4G LTE CAT4 IoT Router
2. TR341-W
3G/WCDMA/UMTS/HSPA IoT Router
Part Number:
1. TR341-L<1><2>-<3>
2. TR341-W<1><2>-<3>
1. TR341-L<1><2>-<3>
2. TR341-W<1><2>-<3>
Decription:
1. 4G Router, WIFI, 2-RJ45, 1-RS232, 1-RS485
2. 3G Router, WIFI, 2-RJ45, 1-RS232, 1-RS485
● <1>, means different module for different countries and regions
● <2>=DS, Dual SIM(Dual SIM on single module, failover)
● <3>=W, WIFI
● <3>=G, GPS(standalone GPS)
1. 4G Router, WIFI, 2-RJ45, 1-RS232, 1-RS485
2. 3G Router, WIFI, 2-RJ45, 1-RS232, 1-RS485
● <1>, means different module for different countries and regions
● <2>=DS, Dual SIM(Dual SIM on single module, failover)
● <3>=W, WIFI
● <3>=G, GPS(standalone GPS)
Frequency band:
1. 4G LTE CAT 4
● EMEA:B1/B3/B5/B7/B8/B20/B38/B40/B41
● ANZ/LATAM:B1/B3/B5/B7/B8/B28
● NA:B2/B4/B5/B12/B13/B14
1. 4G LTE CAT 4
● EMEA:B1/B3/B5/B7/B8/B20/B38/B40/B41
● ANZ/LATAM:B1/B3/B5/B7/B8/B28
● NA:B2/B4/B5/B12/B13/B14
2. 3G/HSPA/UMTS/WCDMA
● Region: 900/2100MHz, or 850/1900/2100MHz
● Global: 800/850/900/1900/2100
1. <1> in part number means different frequency band for different market, <2> means the router comes with dual sim(DS) or not, <3> means if the router comes with WIFI(G), or GPS(G), please ask Bivocom sales representatives or your local partner for more information.
2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.
| Model |
Part Number* |
Description |
Frequency Band* |
|---|---|---|---|
| TR341-LF |
TR341-L<...>-W |
4G Router, WIFI, 1-RS232, 1-RS485, 5-RJ45 |
4G LTE CAT 4
EMEA: B1/B3/B5/B7/B8/B20/B38/B40/B41 |
| TR341-LF |
TR341-L<...>-WG |
4G Router, WIFI, GPS, 1-RS232, 1-RS485, 4-RJ45 |
ANZ/LATAM: B1/B3/B5/B7/B8/B28 |
| TR341-LF |
TR341-L<...>DS-W | 4G Router, Dual SIM, WIFI, 1-RS232, 1-RS485, 5-RJ45 |
NA: B2/B4/B5/B12/B13/B14 |
| TR341-LF | TR341-L<...>DS-WG |
4G Router, Dual SIM, WIFI, GPS, 1-RS232, 1-RS485, 5-RJ45 |
|
| TR341-W |
TR341-W<...>-W | 3G Router, WIFI, 1-RS232, 1-RS485, 5-RJ45 |
3G/HSPA/UMTS/WCDMA |
| TR341-W | TR341-W<...>-WG |
3G Router, WIFI, GPS, 1-RS232, 1-RS485, 5-RJ45 |
900/2100MHz, or 850/1900/2100MHz |
| TR341-W | TR341-W<...>DS-W | 3G Router, Dual SIM, WIFI, 1-RS232, 1-RS485, 5-RJ45 |
Global: 800/850/900/1900/2100 |
| TR341-W |
TR341-W<...>DS-WG |
3G Router, Dual SIM, WIFI, 1-RS232, 1-RS485, 5-RJ45 |
1. <...> in part number means different frequency band for different market, please ask Bivocom sales representatives or your local partner for more information.
2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.
Note: Bivocom provides customized firmware and hardware, standard product doesn't list all features, for more information, please feel free to contact us at [email protected]
