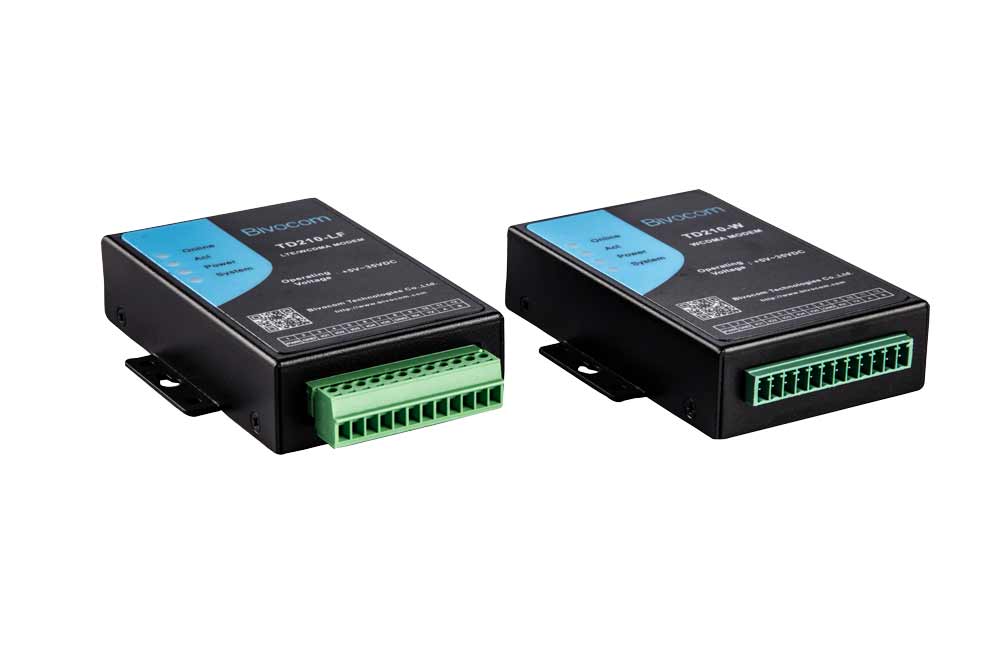

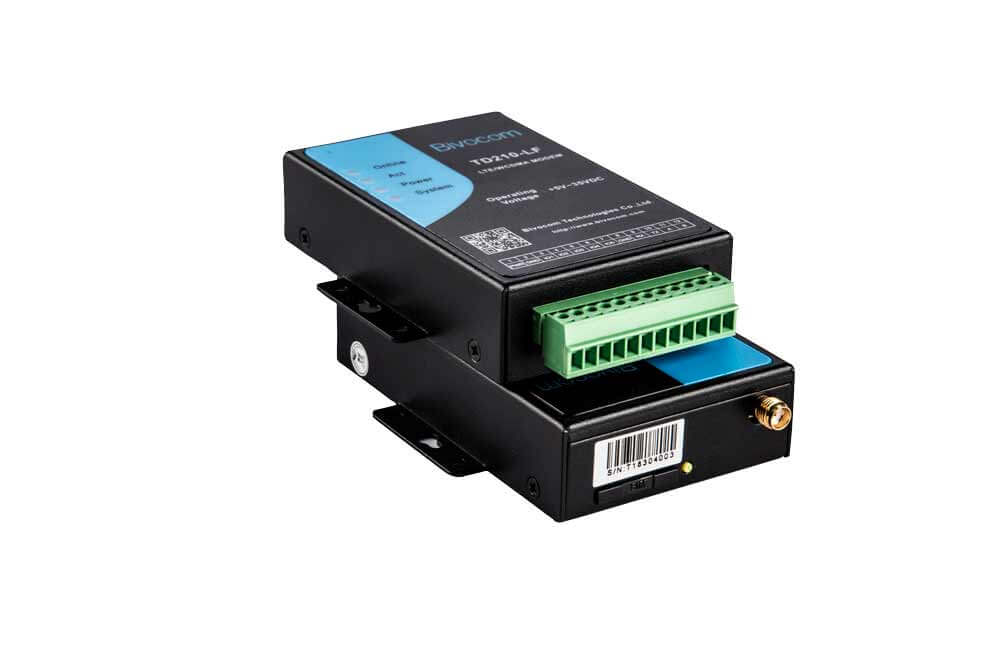

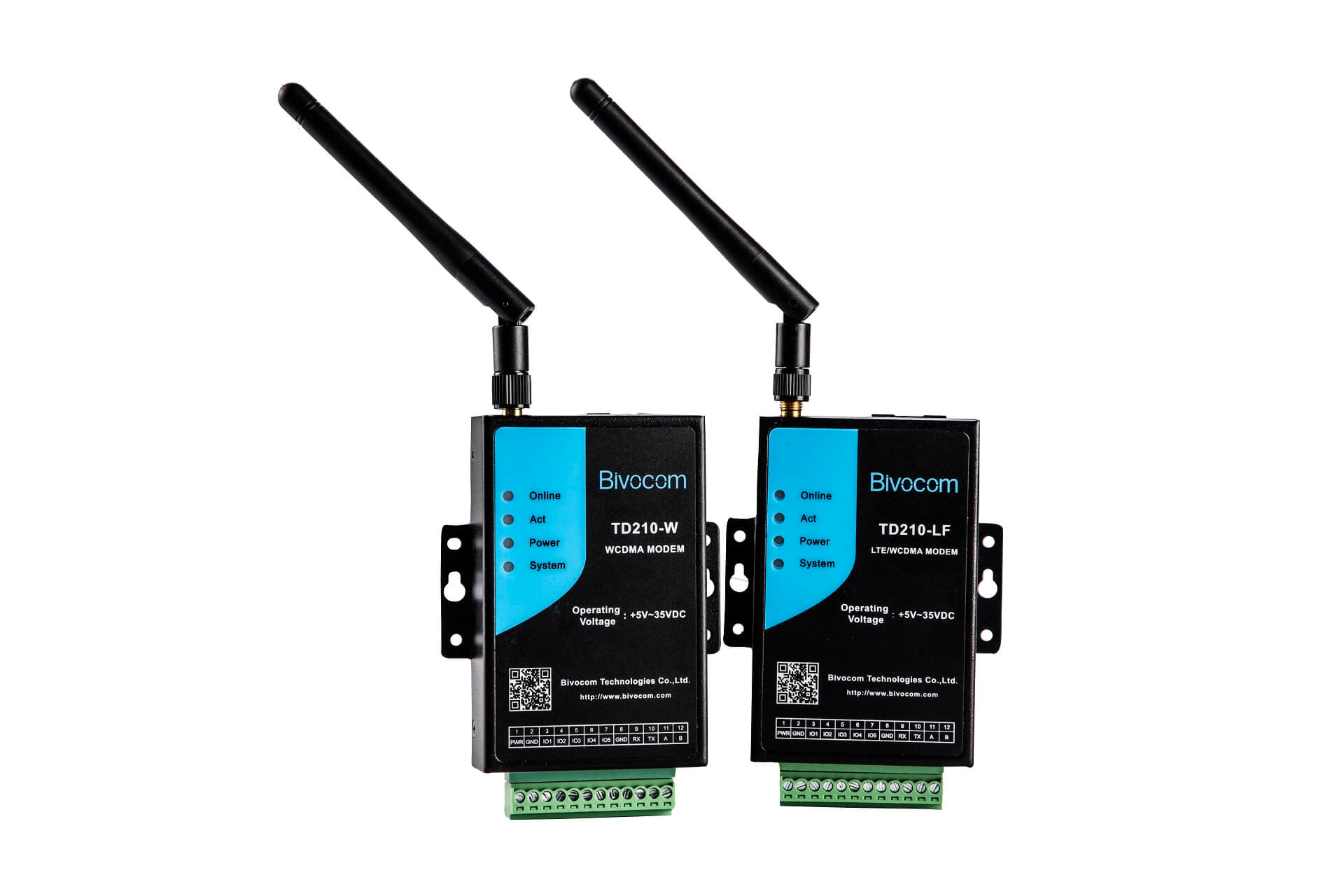

TD210 IoT Cellular Modem

Control and manage your serial data and devices over cellular network

TD210: IoT Cellular Modem

Industrial cellular serial modem for meter reading&automation

● Industrial MCU built in, rugged and reliable
● Global 4G/3G/2G compatible
● 1-RS232, 1-RS485
● Modbus RTU, MQTT, TCP/UDP protocols
● Transparent data transmission, Modbus to JSON over MQTT,CSD
● AT Command, SMS
● Up to 5 sync data center
● Wide operation voltage: 5-35VDC
● Working temperature: -35°C~+75°C

TD210

Buy Now

Overview
Specifications
Case Study
Order Information

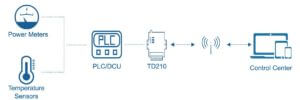

Bivocom TD210 is an industrial cellular modem that provides reliable and secure connectivity for serial port (RS232, RS485) based industrial IoT, meter reading, PLC, IPC and automation application.

It has built in independent MCU chipset, and multi-layer software detection and hardware protection mechanism to ensure reliability and stability.

Industrial cellular modem TD210 supports transparent data transmission, helping you seamlessly transfer the data under MQTT, Modbus RTU, TCP/UDP protocol to your remote server.

Cellular modem TD210 supports up to 5 sync data center, which enables you to receive the same data in different location and backup your data.

A powerful and visual config tool, easy and convenient for you to configure, setup and diagnose the modems.

Cellular Interface

● Antenna Connector: 1 × 50 Ω SMA Female

● SIM Slot: 1

Serial Interface

● Ports: 1-RS232, 1-RS485

Power Requirements

● Standard Power: DC 12V/0.5A
● Input Voltage: 5-35 VDC

Software

● Management: Config Tool, SMS, Cloud DMP (Device Management Platform, license fee required)*

Physical

● Ingress Protection: IP30
● Housing & Weight: Metal, 208 g (0.46 lbs)
● Dimensions: 91 x 58 x 22 mm (3.58 x 2.28 x 0.87 in)
● Mounting: wall mount

Environmental

● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)

Others

● LED Indicators: Online, Act, Power, System
● Warranty Period: Standard: 12 Months, Extended: 2-5 Years*(Please refer to warranty policy)
● Approvals: CE, RCM*, FCC*, NBTC(* Under progress)

Item	TD210
Cellular Interfaces
Antenna Connector SIM Slot	1 × 50 Ω SMA Female 1
Serial Interface
Ports	1-RS232, 1-RS485
Power Requirements
Standard Power Input Voltage	DC 12V/0.5A 5-35 VDC
Software
Network Protocols Management	MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP), SMS Alarm, DNS Config Tool, SMS, Cloud DMP (Device Management Platform)*
Physical
Ingress Protection Housing & Weight Dimensions Mounting	IP30 Metal, 208 g (0.46 lbs) 91 x 58 x 22 mm (3.58 x 2.28 x 0.87 in) 91 x 58 x 22 mm (3.58 x 2.28 x 0.87 in)
Environmental
Operating Temperature	-35°C to +75°C (-31℉ to +167℉)
Others
LED Indicators Warranty Period Approvals	Online, Act, Power, System Standard: 12 Months Extended: 2-5 Years(Please refer to warranty policy) CE, RCM, FCC, NBTC( Under progress)

Dimension(mm) and Ports

IoT-based Smart Hospital Guidance Robot Solution

IoT-based Speed Measurement Solution on Highway

Fail to load posts. Try to refresh page.

Model:
   1. TD210-LF
   2. TD210-W
   3. TD210-G

Part Number:
   1. TD210-L<...>
   2. TD210-W<...>
   3. TD210-G<...>

Decription:
   1. 4G Modem, 1-RS232, 1-RS485
   2. 3G Modem, 1-RS232, 1-RS485
   3. GPRS Modem, 1-RS232, 1-RS485

Frequency band:
   1. 4G LTE CAT 4
   ● EMEA:B1/B3/B5/B7/B8/B20/B38/B40/B41
   ● ANZ/LATAM:B1/B3/B5/B7/B8/B28
   ● NA:B2/B4/B5/B12/B13/B14

   2. 3G/HSPA/UMTS/WCDMA
   ● Region: 900/2100MHz, or 850/1900/2100MHz
   ● Global: 800/850/900/1900/2100

3. GSM/GPRS
● 850/900/1800/1900MHz

Model	Part Number*	Description	Frequency Band*
TD210-LF	TD210-L<...>	4G Modem, 1-RS232, 1-RS485	4G LTE CAT 4 EMEA: B1/B3/B5/B7/B8/B20/B38/B40/B41 ANZ/LATAM: B1/B3/B5/B7/B8/B28 NA: B2/B4/B5/B12/B13/B14
TD210-W	TD210-W<...>	3G Modem, 1-RS232, 1-RS485	3G/HSPA/UMTS/WCDMA 900/2100MHz, or 850/1900/2100MHz Global: 800/850/900/1900/2100
TD210-G	TD210-G<...>	GPRS Modem, 1-RS232, 1-RS485	GSM/GPRS 850/900/1800/1900MHz

1. <...> in part number means different frequency band for different market, please ask Bivocom sales representatives or your local partner for more information.

2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.
