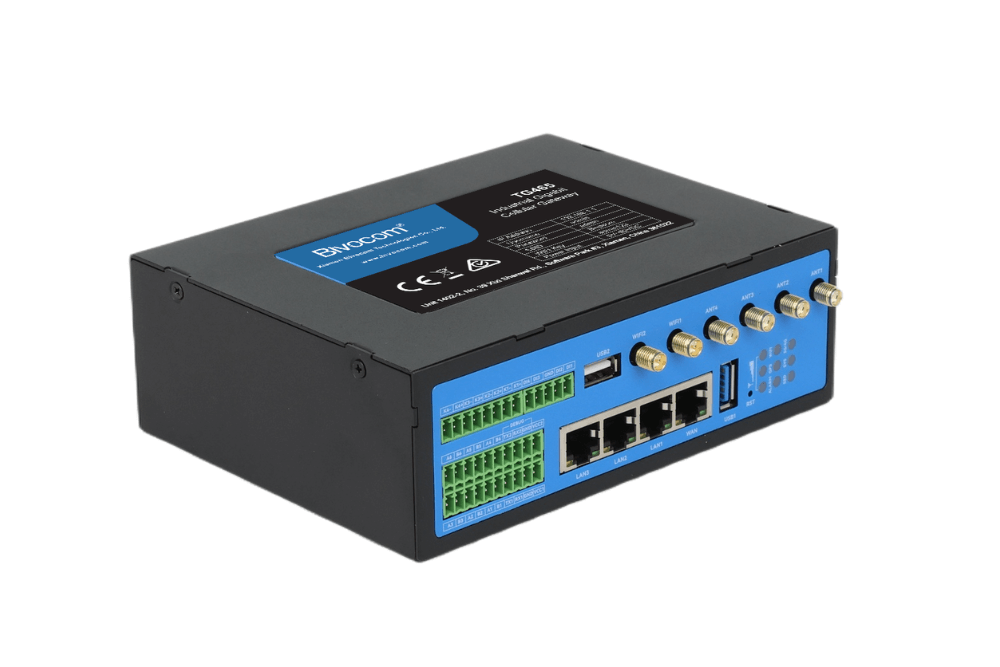

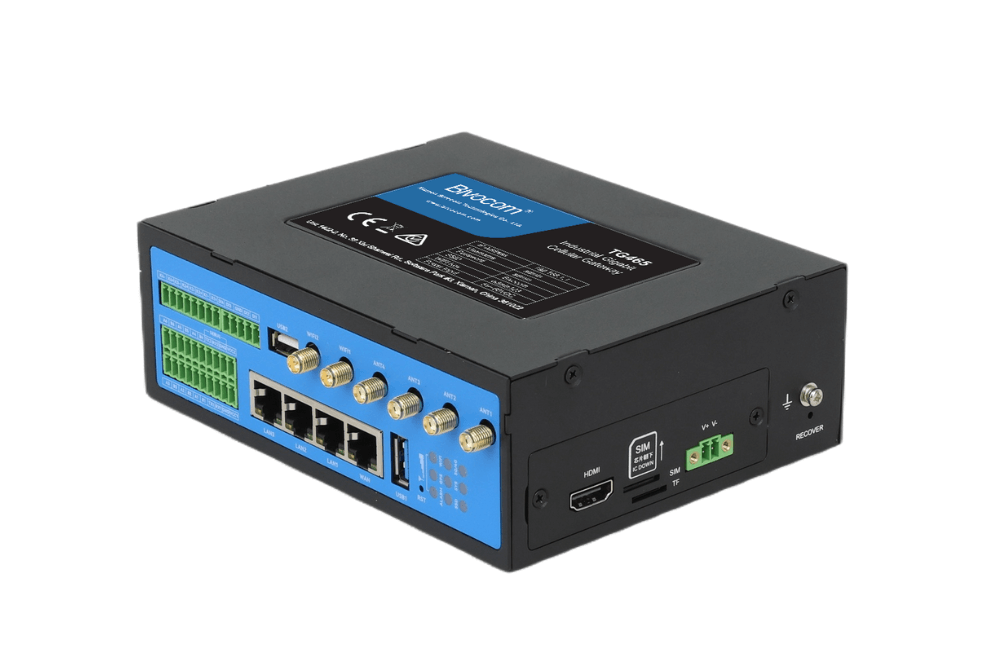

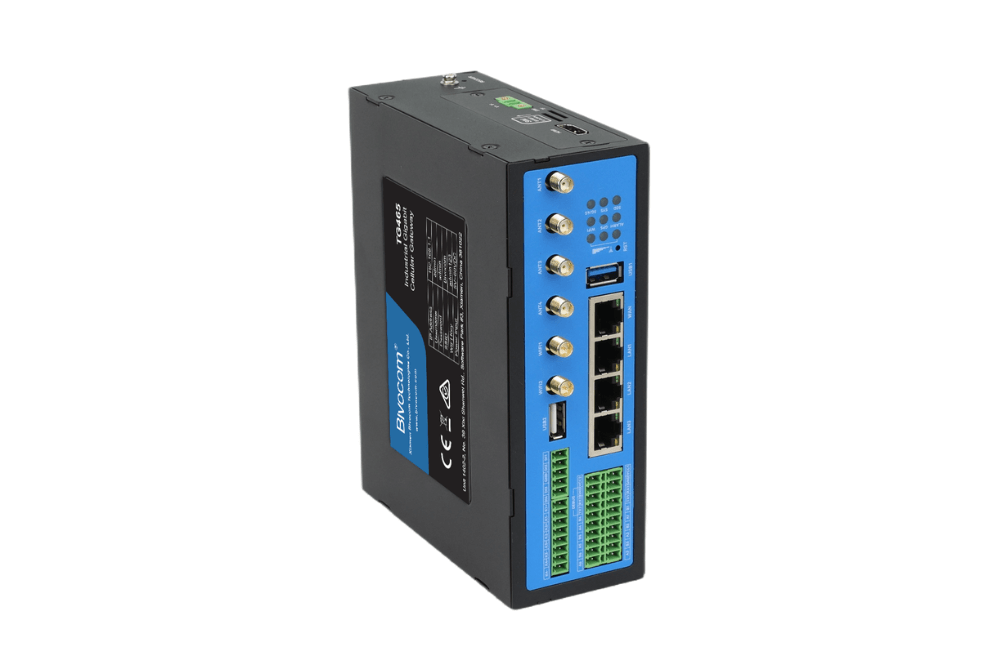

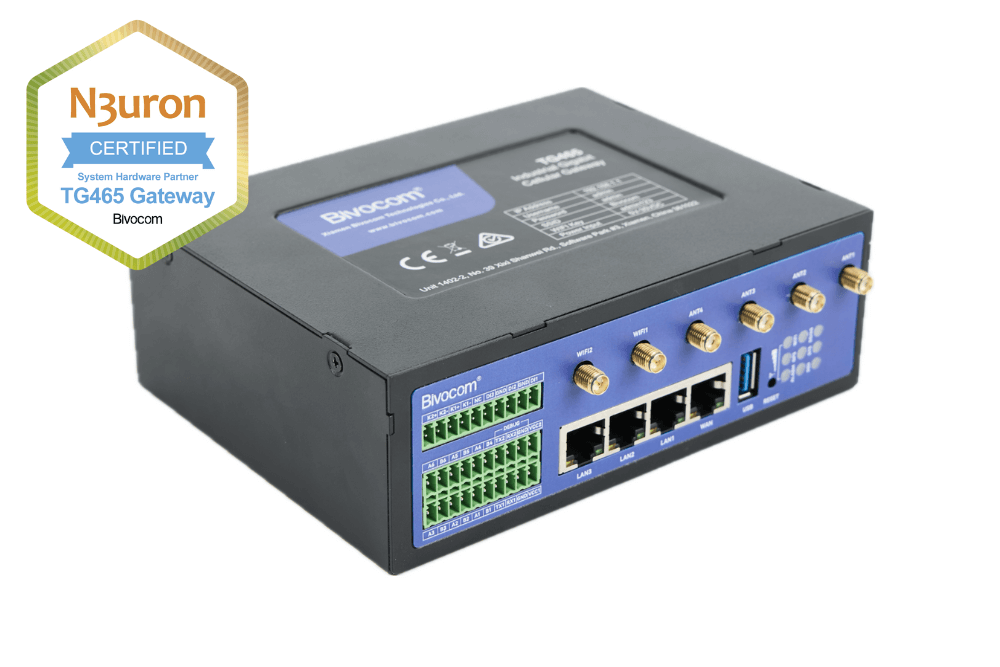

TG465 Programmable 5G Edge Gateway
Quad-core 64-bit ARM Cortex-A55 up to 2GHz
2GB DDR4 RAM(8GB Option), 16GB eMMC Flash(128GB Option)
Openwrt Linux OS with Python/C/C++ programmable, or Unbuntu
2GB DDR4 RAM(8GB Option), 16GB eMMC Flash(128GB Option)
Openwrt Linux OS with Python/C/C++ programmable, or Unbuntu
TG465: Programmable Smart 5G Gateway
● Quad-core 64-bit ARM Cortex-A55 up to 2GHz
● NPU up to 1 TOPS, ARM G52 2EE GPU
● Up to 2GB RAM (DDR4, 8GB Option) and 16GB Flash(eMMC, 128GB Option), NVMe SSD(Option, up to 2TB)
● Openwrt Linux OS with Python/C/C++ programmable, or Unbuntu Linux OS, docker container, flexible for secondary development
● 5G NR or 4G LTE to choose
● 4-RJ45(GbE),1-RS232, 6-RS485, 3-DI(Up to 4, Option), 2-Relay(Up to 4, Option), 1-USB3.0, 1-TF, WIFI6(Option), HDMI(Option), Super capacitor(Option)
● MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, IEC101/104 and VPN
● NPU up to 1 TOPS, ARM G52 2EE GPU
● Up to 2GB RAM (DDR4, 8GB Option) and 16GB Flash(eMMC, 128GB Option), NVMe SSD(Option, up to 2TB)
● Openwrt Linux OS with Python/C/C++ programmable, or Unbuntu Linux OS, docker container, flexible for secondary development
● 5G NR or 4G LTE to choose
● 4-RJ45(GbE),1-RS232, 6-RS485, 3-DI(Up to 4, Option), 2-Relay(Up to 4, Option), 1-USB3.0, 1-TF, WIFI6(Option), HDMI(Option), Super capacitor(Option)
● MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, IEC101/104 and VPN
- Overview
- Specifications
- Case Study
- Order Information
Introduction
The TG465 is a powerful and intelligent next-generation IoT Gateway built-in with ARM CPU, GPU and NPU. It’s designed for mission-critical IoT applications that demand advanced connectivity, edge computing, enhanced security, AI and machine learning, and improved energy efficiency. It finds great utility in sectors such as industry 4.0, telecom sites, smart cities, smart grid, renewable energy, transportation, etc.
The TG465 offers an embedded environment with OpenWRT-based Linux OS, enabling IoT developers to program and install their applications using Python, and C/C++ directly on the hardware via SDK. Additionally, it provides a flexible secondary development option through the Ubuntu programming environment.
The TG465 has a wide range of interfaces and I/Os, allowing seamless connectivity with various equipment, controllers, and sensors. It facilitates data transfer to the cloud server via a 5G/4G LTE cellular network. It also supports crucial industrial protocols like MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, IEC101/104, and VPN, ensuring efficient and secure IoT data connectivity between field devices and the cloud server.
The TG465 offers an embedded environment with OpenWRT-based Linux OS, enabling IoT developers to program and install their applications using Python, and C/C++ directly on the hardware via SDK. Additionally, it provides a flexible secondary development option through the Ubuntu programming environment.
The TG465 has a wide range of interfaces and I/Os, allowing seamless connectivity with various equipment, controllers, and sensors. It facilitates data transfer to the cloud server via a 5G/4G LTE cellular network. It also supports crucial industrial protocols like MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, IEC101/104, and VPN, ensuring efficient and secure IoT data connectivity between field devices and the cloud server.

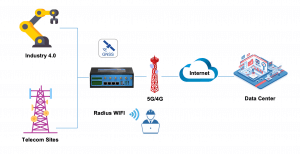

Diagram
System
● CPU: ARM Cortex-A55, 64-bit, quad-core
● RAM: DDR4, 2GB( 8GB, Option)
● Flash: eMMC, 16GB(128GB, Option)
● NPU: 512MAC , up to 1 TOPS
● GPU: Mali-G52, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Cellular Interface
● Antenna Connector: 4×50 Ω SMA Female(5G Version TG465-NR)
2×50 Ω SMA Female(4G Version TG465-LF)
● SIM Slot: 1 x Micro SIM(Dual SIM, Option)
● ESD Protection: 15KV
Ethernet Interface
● Ports: 4-RJ45 (1-WAN, 3-LAN or 4-LAN configurable)
● Data Rates: 10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX
● ESD Protection: 1.5KV
Serial Interfaces
● Connector: Terminal block, 3.5 mm female socket
● Ports: 2-RS232(1-Debug, 1-Shared via RS485), 6-RS485(or 5-RS485, 1-Shared by RS232)
● Baud Rate: 300bps to 230400bps
● ESD protection: 8KV for RS232, 15KV for RS485
I/O
● Connector: Terminal block, 3.5 mm female socket with lock
● Digital Input: 3-DI (Option, Up to 4-DI, 0-30V Input) Status “0”: 0-3V, status “1”: 5-30V
● Relay Output: 2-Relay (Option, up to 4-DO, 5A and 30VDC/250VAC switch)
● Power Output: 2(5-60VDC, controlled via device power input)
Wi-Fi 6(Option)
● Antenna Connector: 2 × 50 Ω RP-SMA Female
● Standard: 2T2R 802.11 a/b/g/n/ac/ax, AP and Client modes
● Security: Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius
GNSS (Option)
● Module: GNSS from cellular module
● Antenna Connector: 1 × 50 Ω SMA Female
External Storage & Display(Option)
● TF Card Slot: 1x Micro SD interface, Up to 32G
● SSD: 1x M2.0 NVMe SSD(Option, up to 2TB)
● USB: 1x USB3.0
● Usage: User Program, Data Storage and Firmware Upgrade
● HDMI: 1 HDMI 2.0 (Option, up to 4K display)
● Others(Option): AI computing card, Audio
Power Supply and Consumption
● Connector: Terminal block, 3.5 mm female socket
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-60 VDC
● Super Capacitor(Option): Power-off alarm, data&log storage
Software
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, HTTPS ARP, QoS, SNTP, Telnet, SSH
● Industrial Protocols: MQTT client/broker, Transparent (TCP/UDP Client/Server), Modbus RTU/TCP, OPC UA, IEC101/104, DL/T645-2007, PLC(S7, FP)*
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
● Firewall: ACL/DMZ/Port Mapping/MAC Binding
● Management: Web, CLI, SMS, Cloud DMP (Device Management Platform)*
● Reliability: Dual SIM, WWAN and WAN Failover, Hardware & Software Watchdog
● Secondary Development: OpenWrt based Linux OS, C/C++, Python SDK; or Ubuntu, Docker container*
Physical Characteristics
● Ingress Protection: IP30
● Housing & Weight: Metal, 799g(1.76lbs), without accessories
● Dimensions: 162x125x55mm (6.38 x 4.92 x 2.16in)
● Mounting: Desktop, DIN-Rail
Environmental
● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
● Storage Temperature: -40°C to +80°C (-40℉ to +176℉)
● Relative Humidity: 5% to 95% (non-condensing)
Others
● Reset Button: 1
● LED Indicators: Signal strength, Alarm, GPS, WIFI, SSD, System, 5G/4G
● Built-in: Watchdog, RTC, Timer
● Approvals: CE*, RCM*, FCC*, NBTC*
● Warranty Period: Standard: 12 Months; Extended: 2-5 Years
● EMC: Level 3
Standard Package Content
1. TG465 Gateway: 1 PCS
2. Power Adapter(DC 12V/1.5A, EU/US/UK/AU plug optional): 1 PCS
3. Mag-mount Cellular Antenna (SMA Male, 1 meter, 5dBi):5G: 4PCS; 4G: 2PCS
4. RS232 Cable (DB9 Female, 1 meter): 1 PCS
5. Ethernet Cable(1 meter): 1 PCS
6. 10-Pin Terminal Block: 3 PCS
7. 2-Pin Terminal Block: 1 PCS
8. DIN-Rail Mount Kits: 1 PCS
● CPU: ARM Cortex-A55, 64-bit, quad-core
● RAM: DDR4, 2GB( 8GB, Option)
● Flash: eMMC, 16GB(128GB, Option)
● NPU: 512MAC , up to 1 TOPS
● GPU: Mali-G52, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Cellular Interface
● Antenna Connector: 4×50 Ω SMA Female(5G Version TG465-NR)
2×50 Ω SMA Female(4G Version TG465-LF)
● SIM Slot: 1 x Micro SIM(Dual SIM, Option)
● ESD Protection: 15KV
Ethernet Interface
● Ports: 4-RJ45 (1-WAN, 3-LAN or 4-LAN configurable)
● Data Rates: 10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX
● ESD Protection: 1.5KV
Serial Interfaces
● Connector: Terminal block, 3.5 mm female socket
● Ports: 2-RS232(1-Debug, 1-Shared via RS485), 6-RS485(or 5-RS485, 1-Shared by RS232)
● Baud Rate: 300bps to 230400bps
● ESD protection: 8KV for RS232, 15KV for RS485
I/O
● Connector: Terminal block, 3.5 mm female socket with lock
● Digital Input: 3-DI (Option, Up to 4-DI, 0-30V Input) Status “0”: 0-3V, status “1”: 5-30V
● Relay Output: 2-Relay (Option, up to 4-DO, 5A and 30VDC/250VAC switch)
● Power Output: 2(5-60VDC, controlled via device power input)
Wi-Fi 6(Option)
● Antenna Connector: 2 × 50 Ω RP-SMA Female
● Standard: 2T2R 802.11 a/b/g/n/ac/ax, AP and Client modes
● Security: Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius
GNSS (Option)
● Module: GNSS from cellular module
● Antenna Connector: 1 × 50 Ω SMA Female
External Storage & Display(Option)
● TF Card Slot: 1x Micro SD interface, Up to 32G
● SSD: 1x M2.0 NVMe SSD(Option, up to 2TB)
● USB: 1x USB3.0
● Usage: User Program, Data Storage and Firmware Upgrade
● HDMI: 1 HDMI 2.0 (Option, up to 4K display)
● Others(Option): AI computing card, Audio
Power Supply and Consumption
● Connector: Terminal block, 3.5 mm female socket
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-60 VDC
● Super Capacitor(Option): Power-off alarm, data&log storage
Software
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, HTTPS ARP, QoS, SNTP, Telnet, SSH
● Industrial Protocols: MQTT client/broker, Transparent (TCP/UDP Client/Server), Modbus RTU/TCP, OPC UA, IEC101/104, DL/T645-2007, PLC(S7, FP)*
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
● Firewall: ACL/DMZ/Port Mapping/MAC Binding
● Management: Web, CLI, SMS, Cloud DMP (Device Management Platform)*
● Reliability: Dual SIM, WWAN and WAN Failover, Hardware & Software Watchdog
● Secondary Development: OpenWrt based Linux OS, C/C++, Python SDK; or Ubuntu, Docker container*
Physical Characteristics
● Ingress Protection: IP30
● Housing & Weight: Metal, 799g(1.76lbs), without accessories
● Dimensions: 162x125x55mm (6.38 x 4.92 x 2.16in)
● Mounting: Desktop, DIN-Rail
Environmental
● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
● Storage Temperature: -40°C to +80°C (-40℉ to +176℉)
● Relative Humidity: 5% to 95% (non-condensing)
Others
● Reset Button: 1
● LED Indicators: Signal strength, Alarm, GPS, WIFI, SSD, System, 5G/4G
● Built-in: Watchdog, RTC, Timer
● Approvals: CE*, RCM*, FCC*, NBTC*
● Warranty Period: Standard: 12 Months; Extended: 2-5 Years
● EMC: Level 3
Standard Package Content
1. TG465 Gateway: 1 PCS
2. Power Adapter(DC 12V/1.5A, EU/US/UK/AU plug optional): 1 PCS
3. Mag-mount Cellular Antenna (SMA Male, 1 meter, 5dBi):5G: 4PCS; 4G: 2PCS
4. RS232 Cable (DB9 Female, 1 meter): 1 PCS
5. Ethernet Cable(1 meter): 1 PCS
6. 10-Pin Terminal Block: 3 PCS
7. 2-Pin Terminal Block: 1 PCS
8. DIN-Rail Mount Kits: 1 PCS

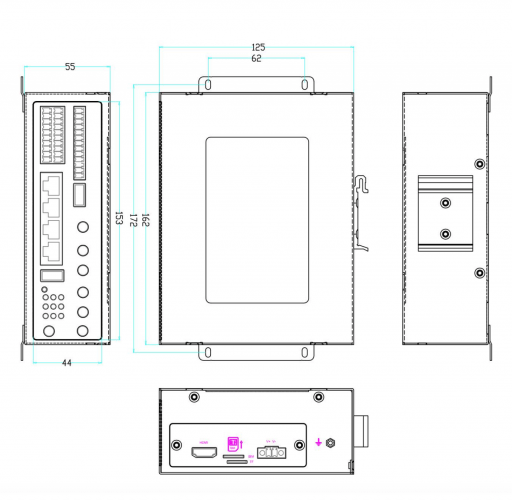

Dimensions

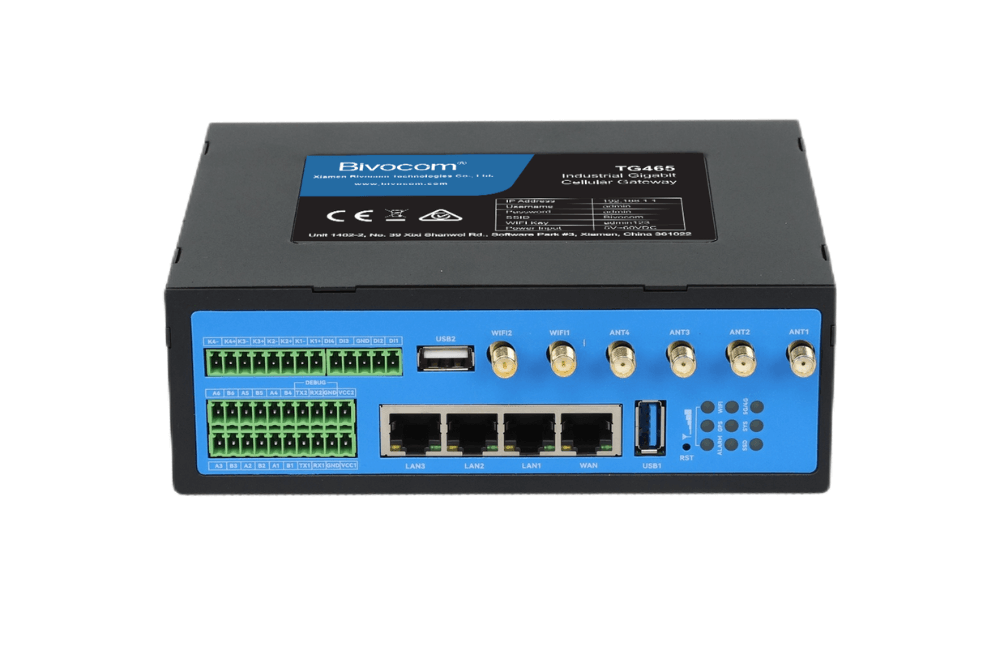

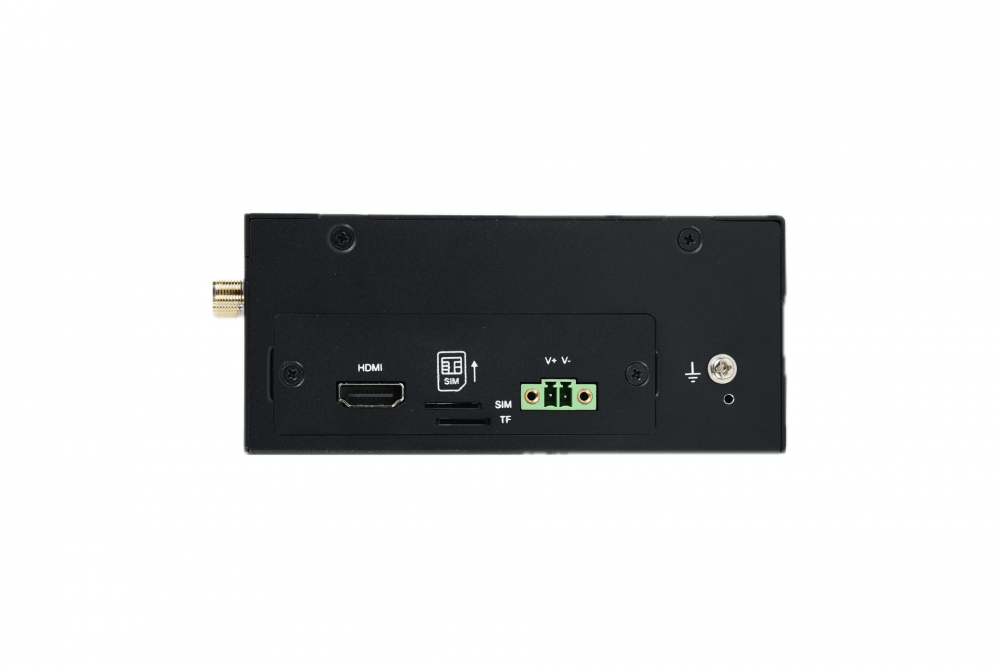

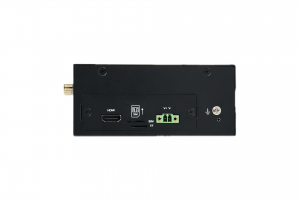

Interfaces

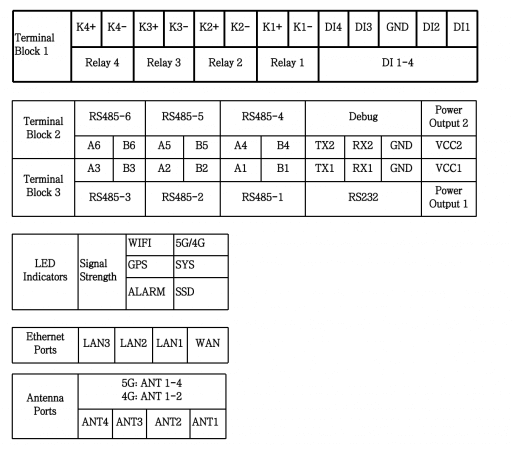

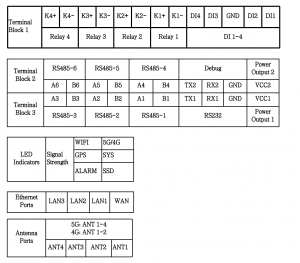

Terminal Blocks
Note:
1. Customized firmware or SDK may be required.
2. There are different modules for different regions to choose.
3. Some protocols may require customized firmware.
4. DSSM=dual sim on single module, supports failover.
5. Customized firmware may be required.
6. There has a license fee for DMP.
7. * Under progress
8. Price of the extended warranty will be different.
9. If you couldn't find the frequency band for your regions or have any questions, please contact Bivocom sales representatives for more information.
10. To save the earth, Bivocom doesn’t print the user guide, if you need it, please go to Bivocom website to download.
1. Customized firmware or SDK may be required.
2. There are different modules for different regions to choose.
3. Some protocols may require customized firmware.
4. DSSM=dual sim on single module, supports failover.
5. Customized firmware may be required.
6. There has a license fee for DMP.
7. * Under progress
8. Price of the extended warranty will be different.
9. If you couldn't find the frequency band for your regions or have any questions, please contact Bivocom sales representatives for more information.
10. To save the earth, Bivocom doesn’t print the user guide, if you need it, please go to Bivocom website to download.
Model:
1. TG465-NR, 5G NR Edge Gateway
2. TG465-LF, 4G LTE Edge Gateway
Part Number:
1. TG465-NR<1><2>-<3>
2. TG465-L<1><2>-<3>
Description:
1. 5G IoT Gateway, 4-GbE, 1-RS232, 6-RS485, 3-DI, 2-Relay, 1-USB, 1-TF
2. 4G IoT Gateway, 4-GbE, 1-RS232, 6-RS485, 3-DI, 2-Relay, 1-USB, 1-TF
Option features:
<1>: 5G or 4G module for different countries and regions
<2>: DS=dual SIM on single module, failover only
<3>: W6=2WIFI 6
GN=GNSS from cellular module
HDMI=HM
SSD=SD
Super capacitor=SC
Frequency band:
1. TG465-NR
● 5G NR Sub-6
n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
LTE FDD:B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/B25/B26/B28/B29/B30/B32/B66/B71
LTE TDD: B34/B38/39/B40/B41/B42/B43/B48
2. TG465-LF
● 4G LTE CAT 6 Version
EMEA&APAC:B1/B3/B5/B7/B8/B20/B28
NA: B2/B4/B5/B7/B12/B13/B25
● 4G LTE CAT 4 Version
EMEA: 1/B3/B5/B7/B8/B20/B38/B40/B41
ANZ/LATAM: B1/B3/B5/B7/B8/B28
NA: B2/B4/B5/B12/B13/B14
1. TG465-NR, 5G NR Edge Gateway
2. TG465-LF, 4G LTE Edge Gateway
Part Number:
1. TG465-NR<1><2>-<3>
2. TG465-L<1><2>-<3>
Description:
1. 5G IoT Gateway, 4-GbE, 1-RS232, 6-RS485, 3-DI, 2-Relay, 1-USB, 1-TF
2. 4G IoT Gateway, 4-GbE, 1-RS232, 6-RS485, 3-DI, 2-Relay, 1-USB, 1-TF
Option features:
<1>: 5G or 4G module for different countries and regions
<2>: DS=dual SIM on single module, failover only
<3>: W6=2WIFI 6
GN=GNSS from cellular module
HDMI=HM
SSD=SD
Super capacitor=SC
Frequency band:
1. TG465-NR
● 5G NR Sub-6
n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
LTE FDD:B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/B25/B26/B28/B29/B30/B32/B66/B71
LTE TDD: B34/B38/39/B40/B41/B42/B43/B48
2. TG465-LF
● 4G LTE CAT 6 Version
EMEA&APAC:B1/B3/B5/B7/B8/B20/B28
NA: B2/B4/B5/B7/B12/B13/B25
● 4G LTE CAT 4 Version
EMEA: 1/B3/B5/B7/B8/B20/B38/B40/B41
ANZ/LATAM: B1/B3/B5/B7/B8/B28
NA: B2/B4/B5/B12/B13/B14
Note:
1. <1> in part number means different frequency band for different market
<2> means the router comes with dual sim(DS) or dual module(DM)
<3> means if the router comes with WIFI(G), or GPS(G), please ask Bivocom sales representatives or your local partner for more information.
2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.
3. Dual SIM means dual SIM based on single module for failover, Dual module means dual sim based on separate dual module for load balance.
1. <1> in part number means different frequency band for different market
<2> means the router comes with dual sim(DS) or dual module(DM)
<3> means if the router comes with WIFI(G), or GPS(G), please ask Bivocom sales representatives or your local partner for more information.
2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.
3. Dual SIM means dual SIM based on single module for failover, Dual module means dual sim based on separate dual module for load balance.
